NJR4265R - 24GHz Microwave Intelligent Motion Sensor

Key Features

  • Motion sensor using the 24GHz Microwave Doppler.
  • Antenna, RF circuit, IF amp, MCU and voltage regulator are integrated in a small package (14 x 20.4 x 8.8mm).
  • Communication with PC/MCU is available by UART interface and stand-alone operation is also possible.
  • Signal processing software for the steady sensing.
  • Enhancing the signal from movement object and decreasing random noises.
  • Decreasing the mutual interference between sensors.
  • Identification of direction.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NJR4262 K-Band Doppler Sensor Module JRC
NJR4267 24GHz band Doppler Sensor Module Nisshinbo
NJR4652F2S1 60GHz Smart Sensor Micro-Module Nisshinbo
NJR4652F2S2 60GHz Smart Sensor Micro Module Nisshinbo
NJR4652JS1 60GHz Smart Sensor Micro-Module Nisshinbo

Other Datasheets by New Japan Radio

Part Number Description
NJR4266 24GHz Microwave Intelligent Motion Sensor
NJR4234BV 24GHz Microwave Intelligent Distance Measurement Sensor Module
NJR4234BW 24GHz Microwave Intelligent Distance Measurement Sensor Module

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

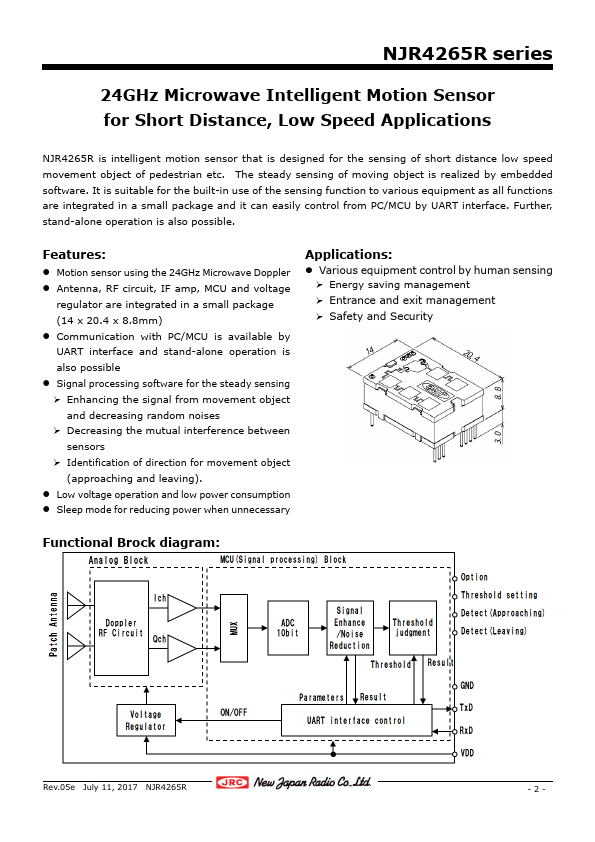

NJR4265R series 24GHz Microwave Intelligent Motion Sensor for Short Distance, Low Speed Applications NJR4265R is intelligent motion sensor that is designed for the sensing of short distance low speed movement object of pedestrian etc. The steady sensing of moving object is realized by embedded software. It is suitable for the built-in use of the sensing function to various equipment as all functions are integrated in a small package and it can easily control from PC/MCU by UART interface. Further, stand-alone operation is also possible. Features:  Motion sensor using the 24GHz Microwave Doppler  Antenna, RF circuit, IF amp, MCU and voltage regulator are integrated in a small package (14 x 20.4 x 8.
