NJR4266 - 24GHz Microwave Intelligent Motion Sensor

Key Features

  • Motion sensor using the 24GHz Microwave Doppler.
  • Antenna, Microwave RF circuit, IF amp, MCU and voltage regulator are integrated in a lowprofile package (17.2 x 27.3 x 5.2 mm).
  • Low-power-consumption ECO mode: Minimum 1.9 mA @ 3.3 V.
  • Sleep mode for reducing power when unnecessary.
  • Signal processing software for the steady sensing.
  • Enhancing the signal from movement object and decreasing random noises.
  • Decreasing the mutual interference between sensors.
  • Id.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NJR4262 K-Band Doppler Sensor Module JRC
NJR4267 24GHz band Doppler Sensor Module Nisshinbo
NJR4652F2S1 60GHz Smart Sensor Micro-Module Nisshinbo
NJR4652F2S2 60GHz Smart Sensor Micro Module Nisshinbo
NJR4652JS1 60GHz Smart Sensor Micro-Module Nisshinbo

Other Datasheets by New Japan Radio

Part Number Description
NJR4265R 24GHz Microwave Intelligent Motion Sensor
NJR4234BV 24GHz Microwave Intelligent Distance Measurement Sensor Module
NJR4234BW 24GHz Microwave Intelligent Distance Measurement Sensor Module

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

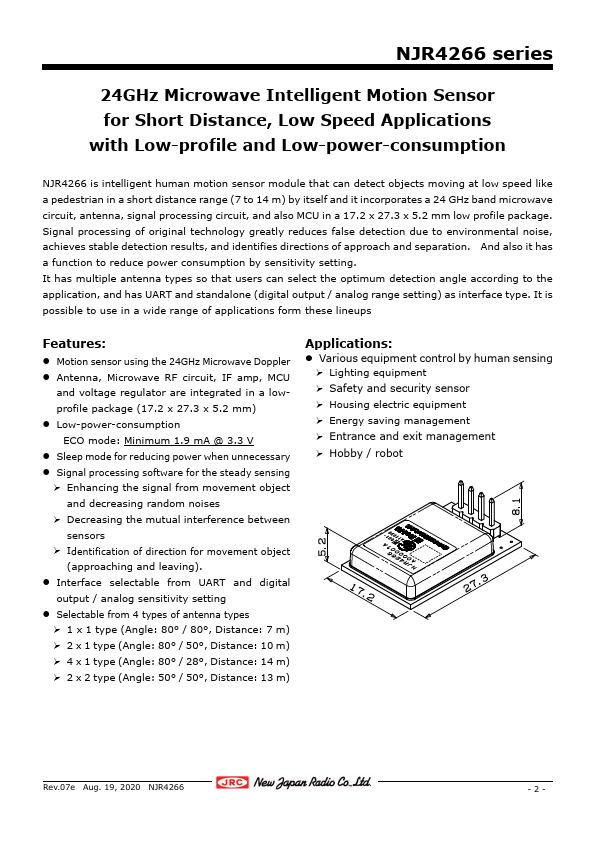

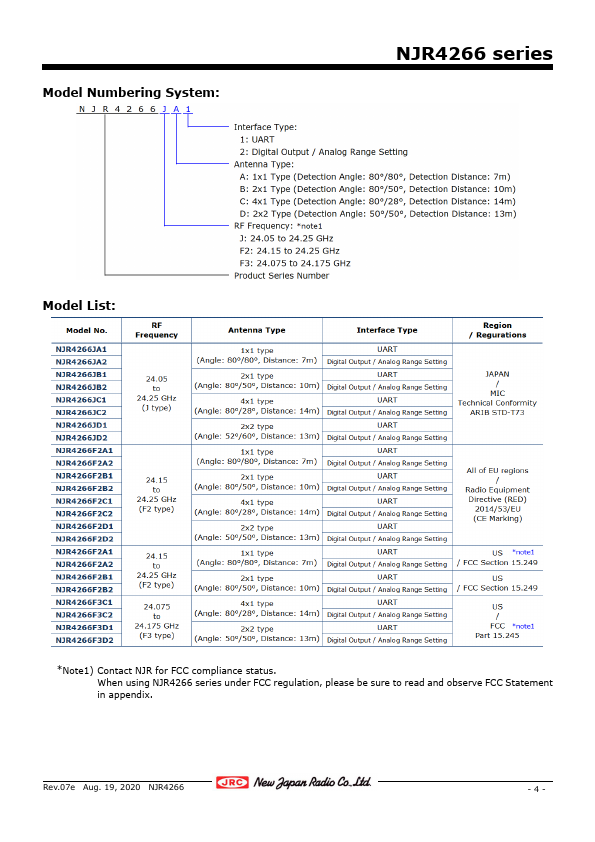

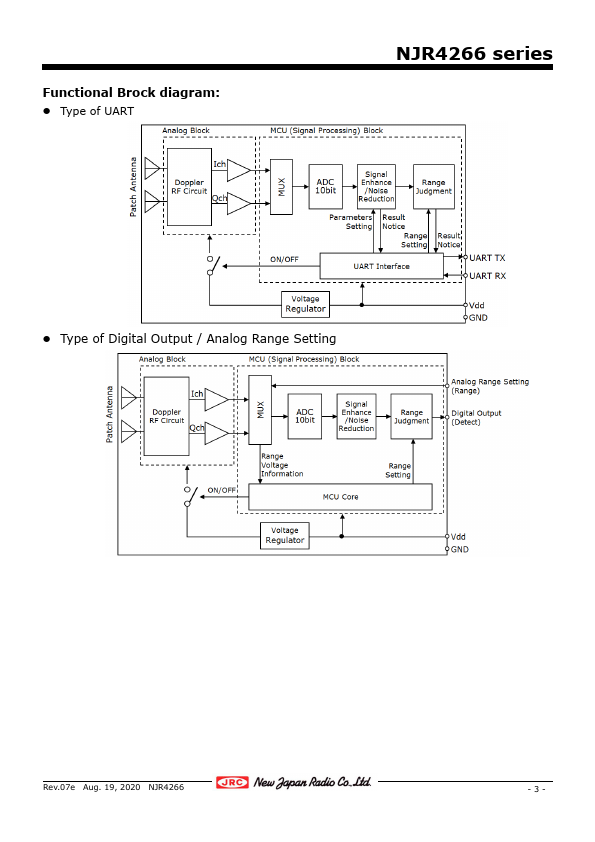

NJR4266 series 24GHz Microwave Intelligent Motion Sensor for Short Distance, Low Speed Applications with Low-profile and Low-power-consumption NJR4266 is intelligent human motion sensor module that can detect objects moving at low speed like a pedestrian in a short distance range (7 to 14 m) by itself and it incorporates a 24 GHz band microwave circuit, antenna, signal processing circuit, and also MCU in a 17.2 x 27.3 x 5.2 mm low profile package. Signal processing of original technology greatly reduces false detection due to environmental noise, achieves stable detection results, and identifies directions of approach and separation. And also it has a function to reduce power consumption by sensitivity setting.
