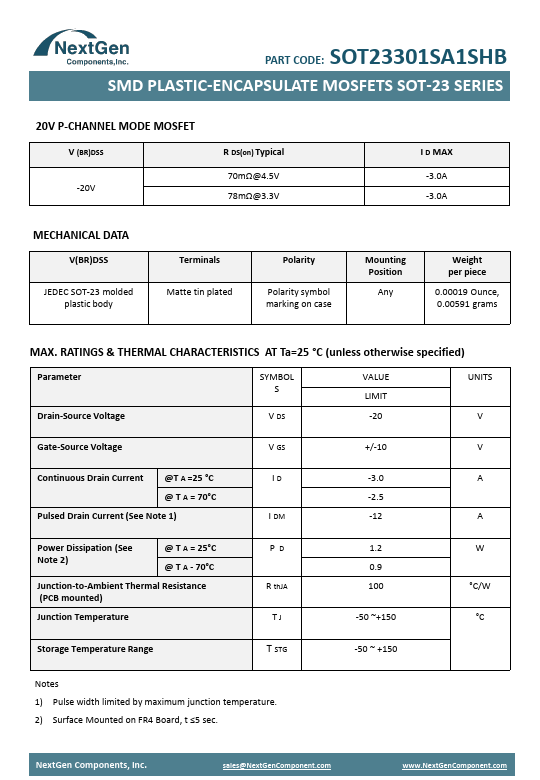

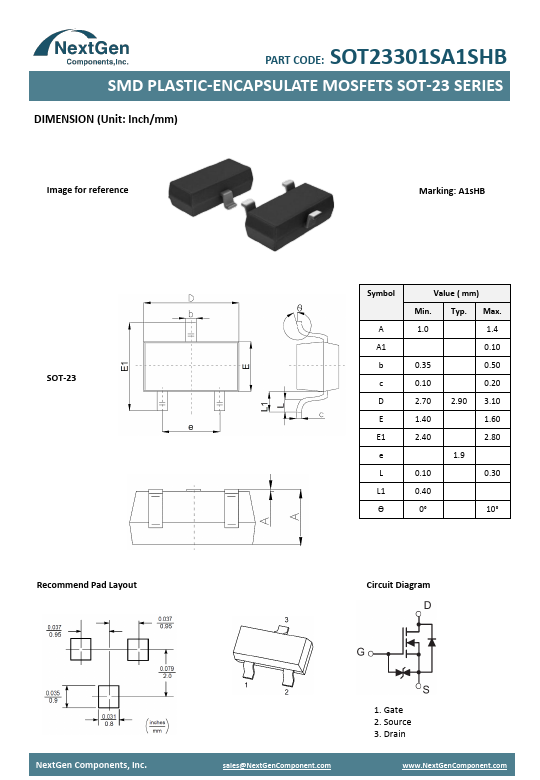

PART CODE: SOT23301SA1SHB SMD PLASTIC-ENCAPSULATE MOSFETS SOT-23 SERIES MAIN FEATURE - Trench FET Power MOSFET - Continuous Drain Current 3.0A APPLICATION - Load Switch for Portable Devices - DC/DC Converter PART CODE GUIDE SOT23 1 1) SOT23: SMD Plastic-Encapsulate MOSFETS, SOT-23 series, 3 pads 2) 301: Type code for Original part number S12301 3) S: Package code, Package in Tape/Reel, 3000pcs/Reel 4) A1SHB: Marking code for “A1s HB” on the case surface, Different Marking for different specification. Request For Quotation A1SHB 4 MORE ITEMS AVAILABLE SOT2301SSA1SHB SOT23301SA1SHB SOT23302SA2SHB Next Gen ponents, Inc. sales@Next Genponent. .Next Genponent. PART CODE: SOT23301SA1SHB SMD PLASTIC-ENCAPSULATE MOSFETS SOT-23 SERIES DIMENSION (Unit: Inch/mm) Image for reference Marking: A1s HB SOT-23 Remend Pad Layout Symbol A A1 b c D E E1 e L L1 Ɵ Value ( mm) Min. Typ. Max. 2.70 2.90...
