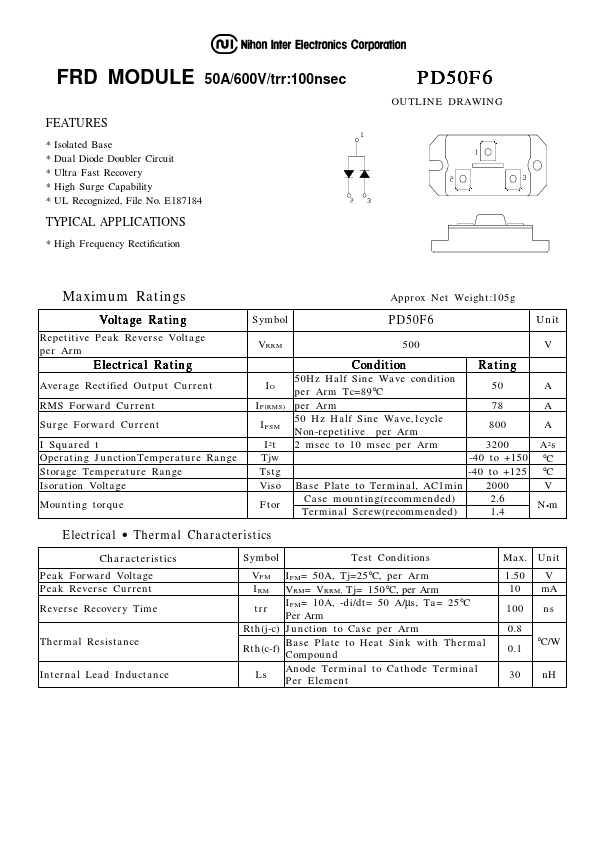

PD50F6
PD50F6 is FRD MODULE manufactured by Nihon Inter Electronics.
ç
FRD MODULE 50A/600V/trr:100nsec
Features
- Isolated Base
- Dual Diode Doubler Circuit
- Ultra Fast Recovery
- High Surge Capability
- UL Recognized, File No. E187184
TYPICAL APPLICATIONS
- High Frequency Rectification

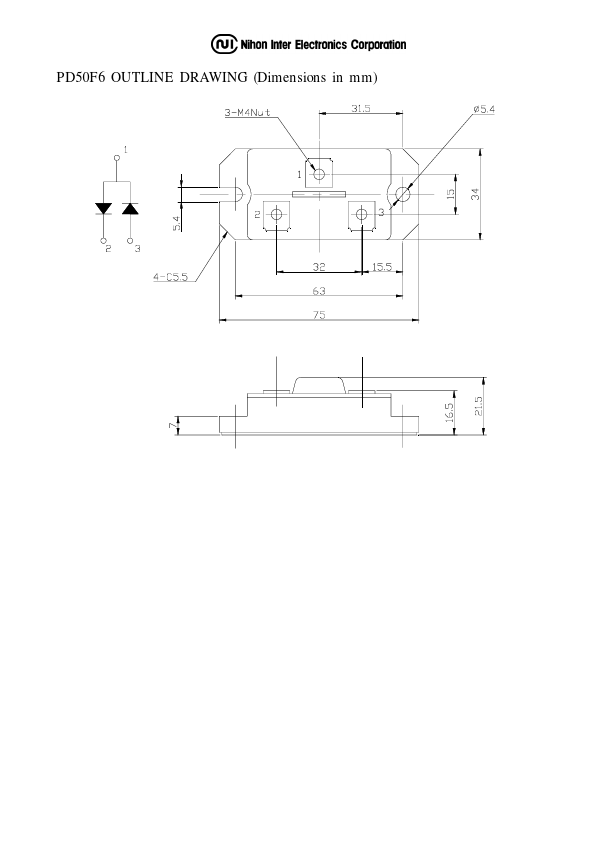

OUTLINE DRAWINGç
Maximum Ratings
Approx Net Weight:105g
Voltage Rating
Repetitive Peak Reverse Voltage per Arm
Electrical Rating
Average Rectified Output Current
RMS Forward Current
Surge Forward Current
I Squared t Operating JunctionTemperature Range Storage Temperature Range Isoration Voltage
Mounting torque
Symbol
Unit
VRRM
IF(RMS)
IFSM
I2t Tjw Tstg Viso
Ftor
Condition
Rating...
