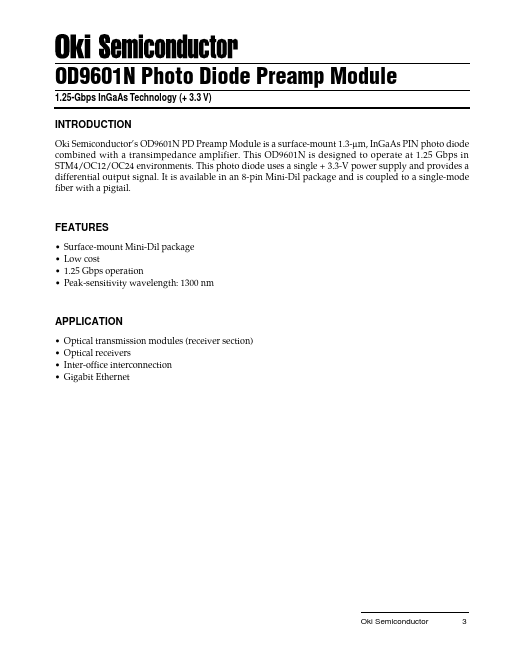

OD9601N Photo Diode Preamp Module 1.25-Gbps In Ga As Technology (+ 3.3 V) INTRODUCTION Oki Semiconductor’s OD9601N PD Preamp Module is a surface-mount 1.3-µm, In Ga As PIN photo diode bined with a transimpedance amplifier. This OD9601N is designed to operate at 1.25 Gbps in STM4/OC12/OC24 environments. This photo diode uses a single + 3.3-V power supply and provides a differential output signal. It is available in an 8-pin Mini-Dil package and is coupled to a single-mode fiber with a pigtail. Features - Surface-mount Mini-Dil package - Low cost - 1.25 Gbps operation - Peak-sensitivity wavelength: 1300 nm APPLICATION - Optical transmission modules (receiver section) - Optical receivers - Inter-office interconnection - Gigabit Ethernet Oki Semiconductor 3 s OD9601N Photo Diode Preamp Module s - - - - - - - - - - - - - - - - - - - - - - - - - - -...
