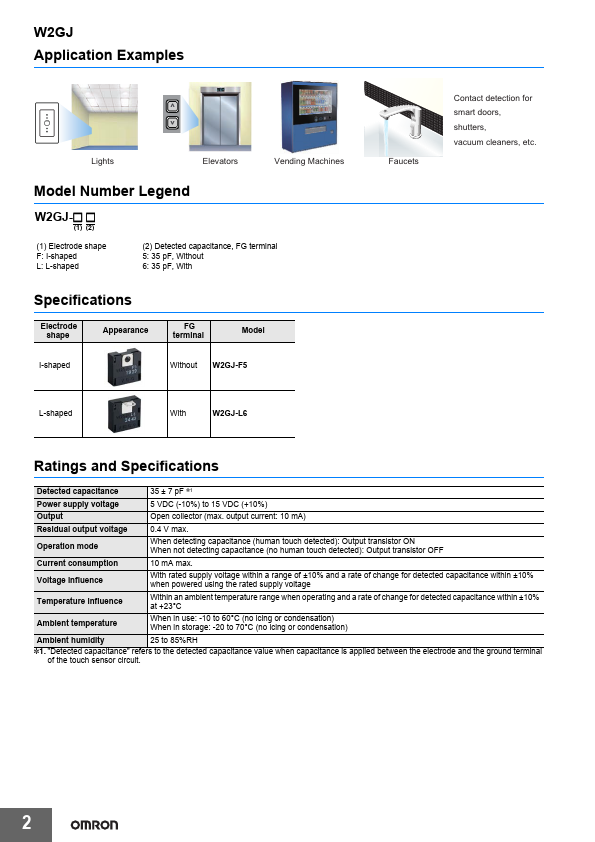

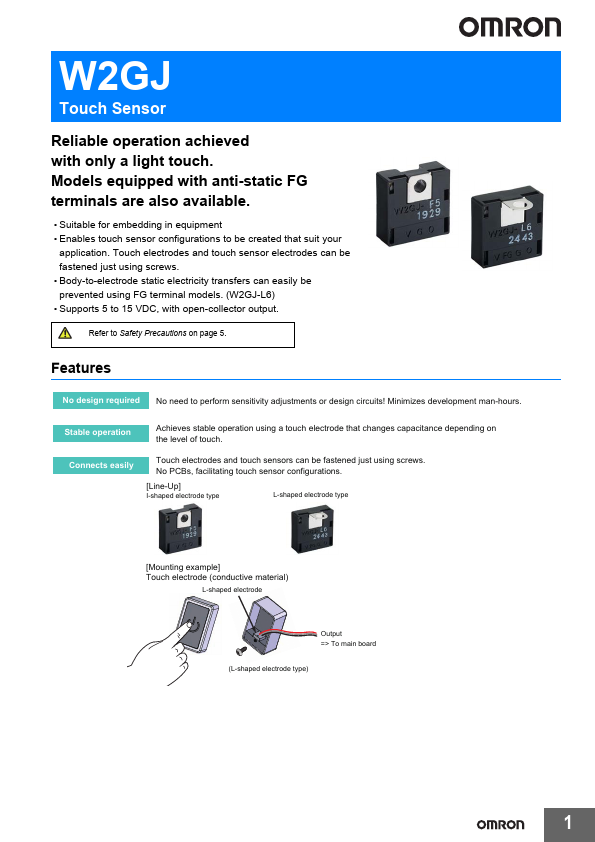

Features No design required No need to perform sensitivity adjustments or design circuits! Minimizes development man-hours. Stable operation Achieves stable operation using a touch electrode that changes capacitance depending on the level of touch. Connects easily Touch electrodes and touch sensors can be fastened just using screws. No PCBs, facilitating touch sensor configurations. [Line-Up] I-shaped electrode type L-shaped electrode type [Mounting example] Touch electrode (conductive material) L-shaped electrode Output => To main board (L-shaped electrode type) W2GJ Application Examples ^ ^ Lights Elevators Vending Machines Model Number Legend W2GJ-@ @ (1) (2) (1) Electrode shape F: I-shaped L: L-shaped (2) Detected capacitance, FG terminal 5: 35 p F, Without 6: 35 p F, With Specifications Electrode shape Appearance FG terminal Model I-shaped Without W2GJ-F5 Faucets Contact detection for smart doors, shutters, vacuum cleaners, etc. L-shaped With W2GJ-L6 Ratings and Specifications Detected capacitance 35 ± 7 p F -...
