W2GJ Datasheet Touch Sensor

Manufacturer: OMRON

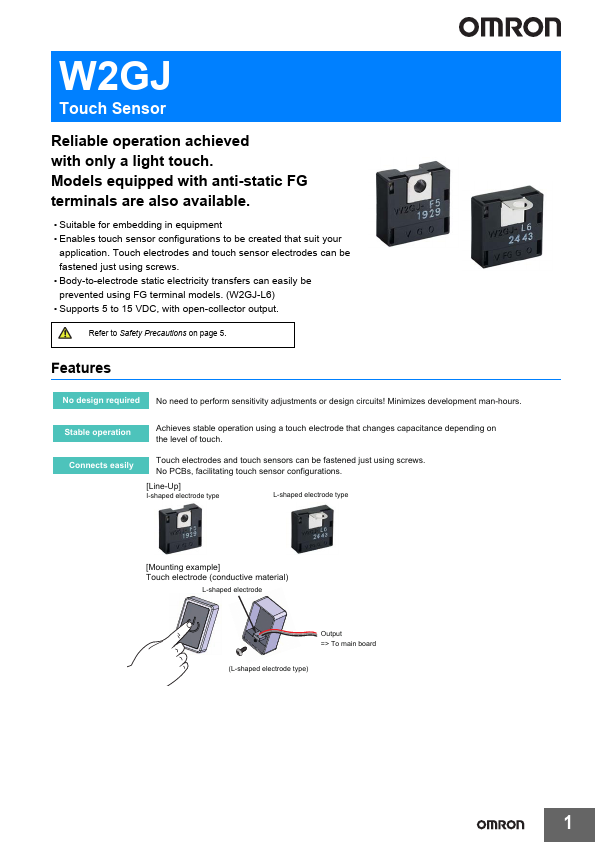

Overview: W2GJ Touch Sensor Reliable operation achieved with only a light touch. Models equipped with anti-static FG terminals are also available. • Suitable for embedding in equipment • Enables touch sensor configurations to be created that suit your application. Touch electrodes and touch sensor electrodes can be fastened just using screws. • Body-to-electrode static electricity transfers can easily be prevented using FG terminal models. (W2GJ-L6) • Supports 5 to 15 VDC, with open-collector output. Refer to Safety Precautions on page 5.

Datasheet Details

Part number	W2GJ
Manufacturer	OMRON
File Size	1.24 MB
Description	Touch Sensor
Datasheet	W2GJ-OMRON.pdf

Key Features

No design required No need to perform sensitivity adjustments or design circuits! Minimizes development man-hours. Stable operation Achieves stable operation using a touch electrode that changes capacitance depending on the level of touch. Connects easily Touch electrodes and touch sensors can be fastened just using screws. No PCBs, facilitating touch sensor configurations. [Line-Up] I-shaped electrode type L-shaped electrode type [Mounting example] Touch electrode (conductive material).

W2GJ Distributor & Price

Compare W2GJ distributor prices and check real-time stock availability from major suppliers. Prices and inventory may vary by region and order quantity.

More Datasheets from OMRON

Part Number	Description
W2GJ-F5	Touch Sensor
W2GJ-L6	Touch Sensor
