2SC3649 - Bipolar Transistor

onsemi

Key Features

Adoption of FBET, MBIT processes.
High breakdown voltage and large current capacity.
Ultrasmall size making it easy to provide high-density, small-sized hybrid IC’s Speciﬁcations ( ) : 2SA1419 Absolute Maximum Ratings at Ta=25°C Parameter Symbol Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) VCBO VCEO VEBO IC ICP Collector Dissipation PC Junction Temperature Storage Temperature Tj Ts.

2SC3649 bipolar transistor by onsemi - Datasheet Preview

Datasheet Details

Part number	2SC3649
Manufacturer	onsemi
File Size	229.06 KB
Description	Bipolar Transistor
Datasheet	2SC3649 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SC3649	PNP/NPN Epitaxial Planar Silicon Transistors	Sanyo Semicon Device
2SC3640	Silicon NPN Power Transistor	Inchange Semiconductor
2SC3642	NPN Triple Diffused Planar Silicon Transistor	Sanyo Semicon Device
2SC3642	NPN Transistor	INCHANGE
2SC3643	NPN Triple Diffused Planar Silicon Transistor	Sanyo Semicon Device

Other Datasheets by onsemi

Part Number	Description
2SC3645	PNP / NPN Epitaxial Planar Silicon Transistors
2SC3646	Bipolar Transistor
2SC3647	Bipolar Transistor
2SC3648	Bipolar Transistor
2SC3332	Bipolar Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

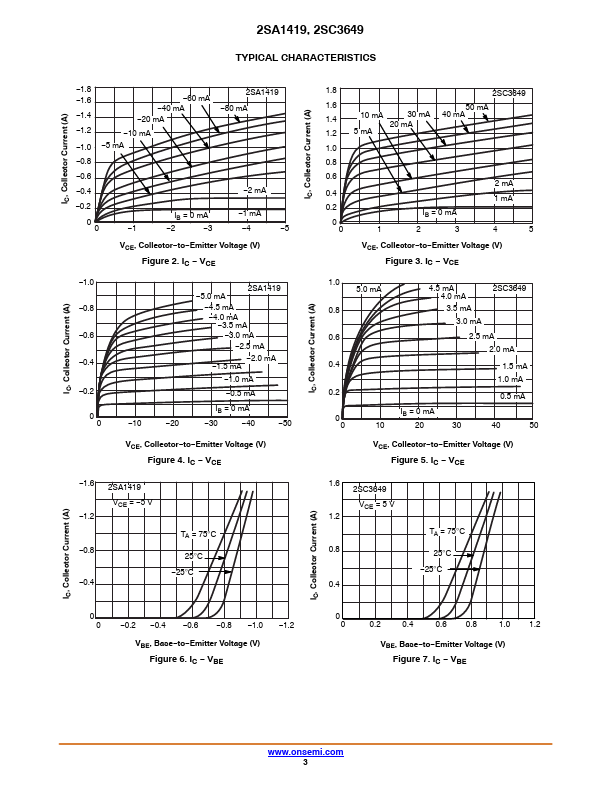

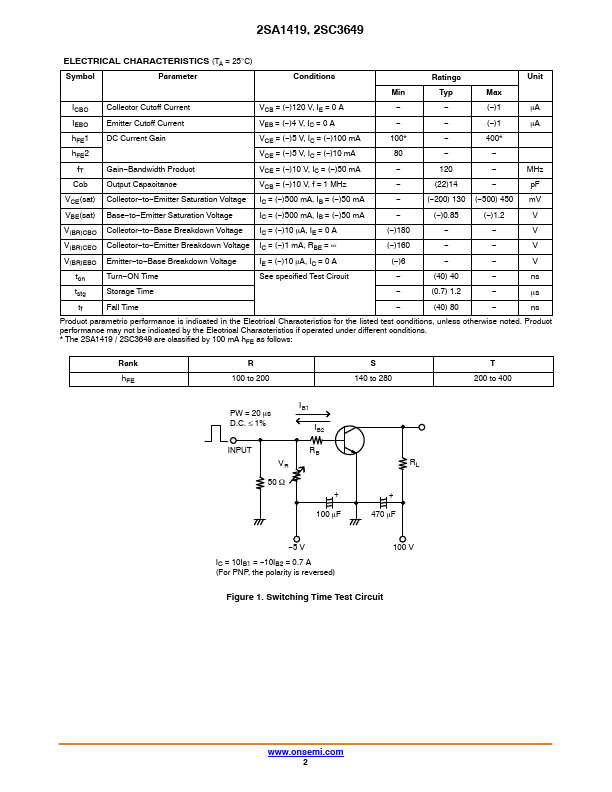

Ordering number : EN2007C 2SA1419/2SC3649 Bipolar Transistor (–)160V, (–)1.5A, Low VCE(sat), (PNP)NPN Single PCP http://onsemi.com Features • Adoption of FBET, MBIT processes • High breakdown voltage and large current capacity • Ultrasmall size making it easy to provide high-density, small-sized hybrid IC’s Speciﬁcations ( ) : 2SA1419 Absolute Maximum Ratings at Ta=25°C Parameter Symbol Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) VCBO VCEO VEBO IC ICP Collector Dissipation PC Junction Temperature Storage Temperature Tj Tstg Conditions When mounted on ceramic substrate (250mm2×0.8mm) Ratings (--)180 (--)160 (--)6 (--)1.5 (--)2.5 500 1.
