2SC4617G - NPN Silicon General Purpose Amplifier Transistor

onsemi

Key Features

Reduces Board Space.
High hFE, 210.
460 (typical).
Low VCE(sat), < 0.5 V.
Available in 8 mm, 7 inch/3000 Unit Tape and Reel.
S Prefix for Automotive and Other.

2SC4617G npn silicon general purpose amplifier transistor by onsemi - Datasheet Preview

Datasheet Details

Part number	2SC4617G
Manufacturer	onsemi
File Size	49.51 KB
Description	NPN Silicon General Purpose Amplifier Transistor
Datasheet	2SC4617G Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SC4617	NPN TRANSISTOR	Motorola Inc
2SC4617	General purpose transistor	Rohm
2SC4617	NPN Transistor	UTC
2SC4617	NPN General Purpose Transistor	SeCoS
2SC4617-Q	NPN Transistor	MCC

Other Datasheets by onsemi

Part Number	Description
2SC4617	General Purpose Amplifier Transistors
2SC4614	Bipolar Transistor
2SC4002	NPN Triple Diffused Planar Silicon Transistor
2SC4027	Bipolar Transistor
2SC4134	Bipolar Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

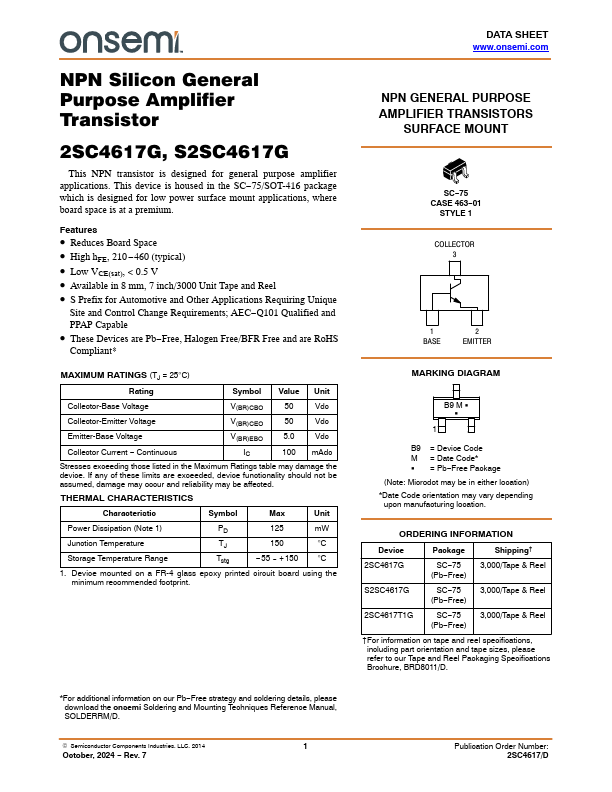

2SC4617G, S2SC4617G NPN Silicon General Purpose Amplifier Transistor This NPN transistor is designed for general purpose amplifier applications. This device is housed in the SC−75/SOT-416 package which is designed for low power surface mount applications, where board space is at a premium. Features • Reduces Board Space • High hFE, 210 −460 (typical) • Low VCE(sat), < 0.
