2SD1623 - Bipolar Transistor

Key Features

  • Adoption of FBET, MBIT processes.
  • Low collector-to-emitter saturation voltage.
  • Large current capacity and wide ASO.
  • Fast switching speed.
  • The ultraminiature package facilitates higher-density mounting, thus allows the applied hybrid IC’s further miniaturization Specifications ( ) : 2SB1123 Absolute Maximum Ratings at Ta=25°C Parameter Symbol Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Coll.

📥 Download Datasheet

Datasheet Details

Part number 2SD1623
Manufacturer onsemi
File Size 236.81 KB
Description Bipolar Transistor
Datasheet download datasheet 2SD1623 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SD1623 PNP / NPN Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SD1623 NPN Epitaxial Planar Silicon Transistor Kexin
2SD1620 NPN Epitaxial Planar Silicon Transistor Sanyo Semicon Device
2SD1620 NPN Epitaxial Planar Silicon Transistor Kexin
2SD1621 PNP/NPN Epitaxial Planar Silicon Transistors Sanyo Semicon Device

Other Datasheets by onsemi

Part Number Description
2SD1620 Bipolar Transistor
2SD1624 Bipolar Transistor
2SD1626 PNP / NPN Epitaxial Planar Silicon Transistors
2SD1628 Bipolar Transistor
2SD1618 Bipolar Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

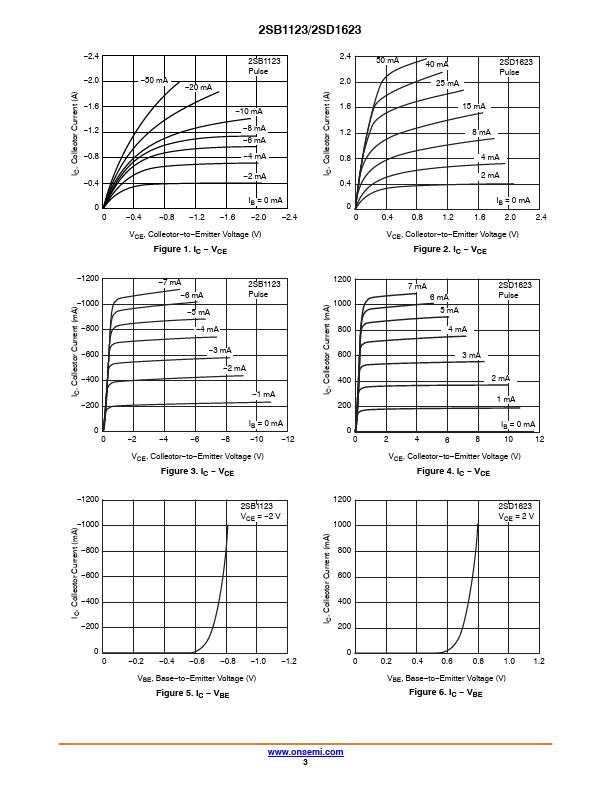

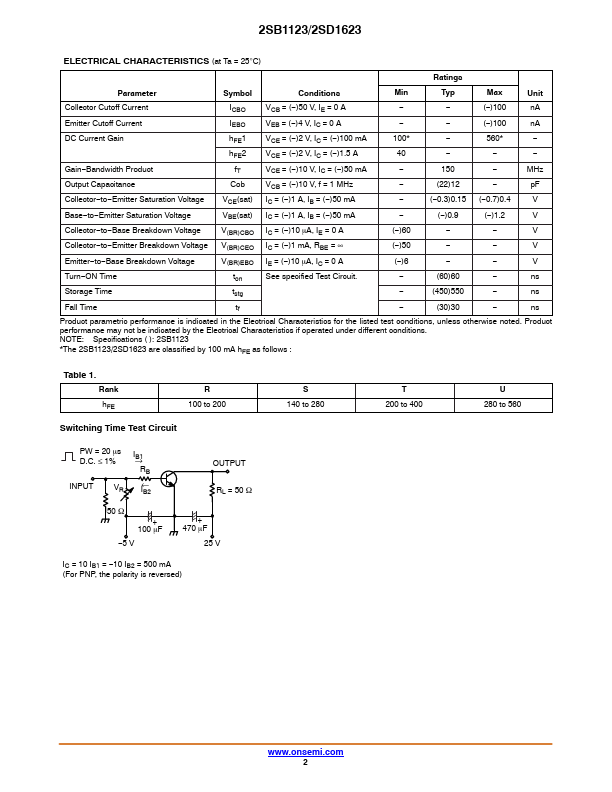

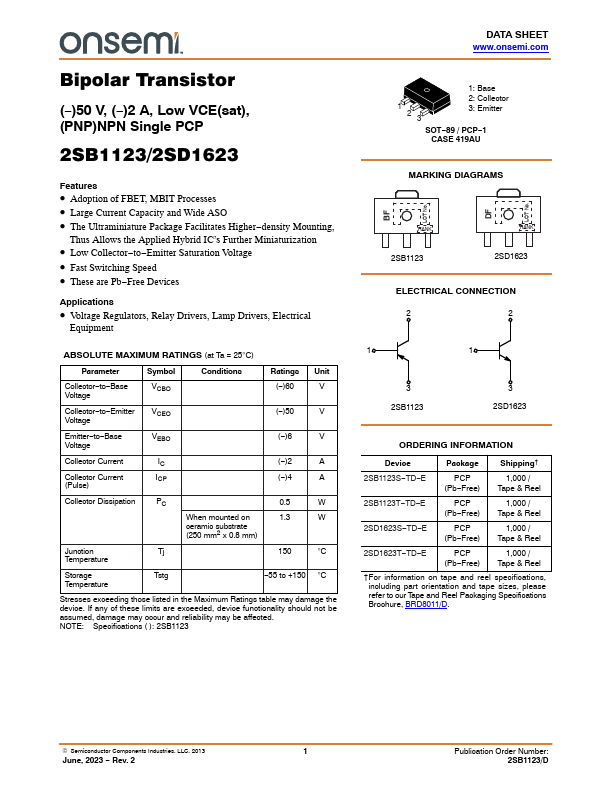

Ordering number : EN1727F 2SB1123/2SD1623 Bipolar Transistor (–)50V, (–)2A, Low VCE(sat), (PNP)NPN Single PCP http://onsemi.com Applicaitons • Voltage regulators, relay drivers, lamp drivers, electrical equipment Features • Adoption of FBET, MBIT processes • Low collector-to-emitter saturation voltage • Large current capacity and wide ASO • Fast switching speed • The ultraminiature package facilitates higher-density mounting, thus allows the applied hybrid IC’s further miniaturization Specifications ( ) : 2SB1123 Absolute Maximum Ratings at Ta=25°C Parameter Symbol Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) VCBO VCEO VEBO IC ICP Package Dimensions unit : mm (typ) 7007B-004 Top View 4.5 1.
