2SD1620 - Bipolar Transistor

Product Overview

ON Semiconductor

Part number	2SD1620
Manufacturer	ON Semiconductor
File Size	186.61 KB
Description	Bipolar Transistor
Datasheet	2SD1620 Datasheet

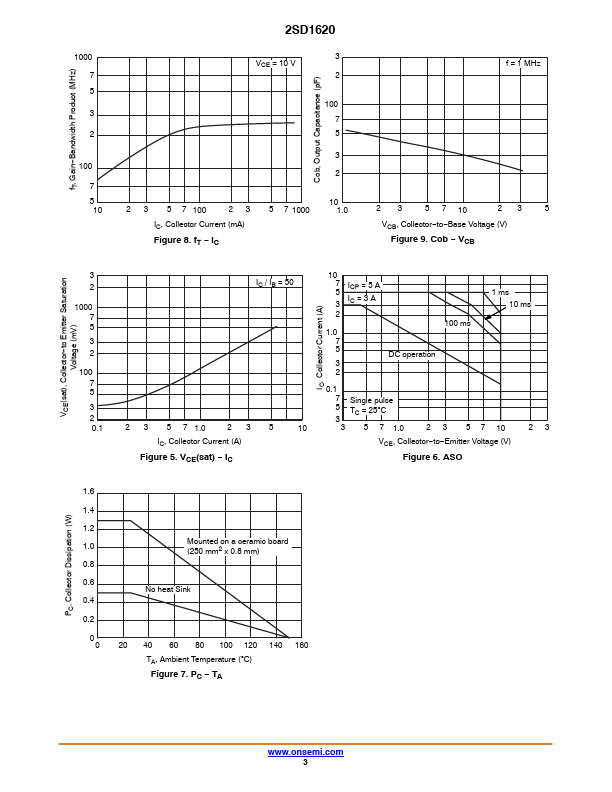

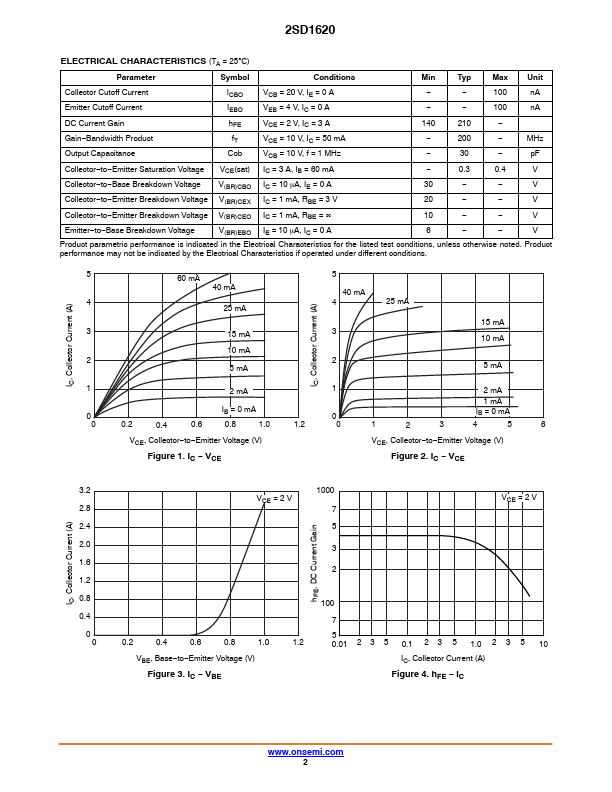

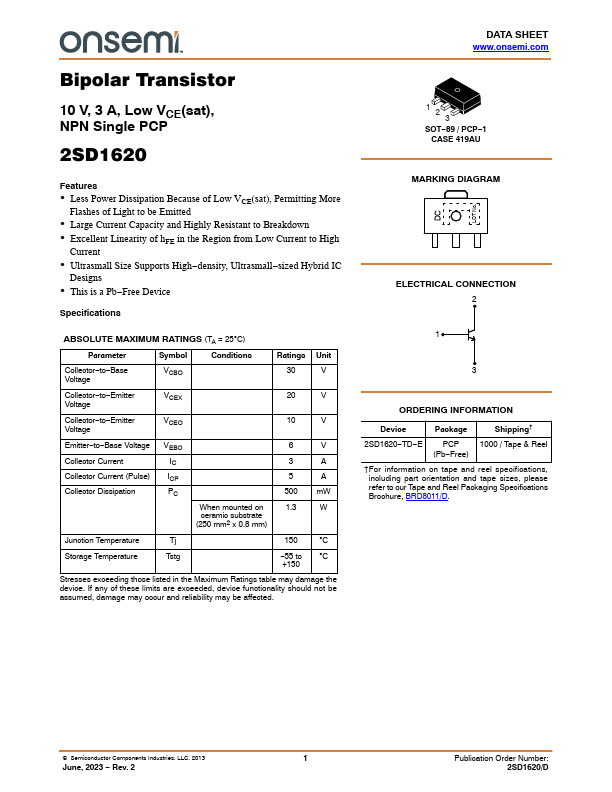

Additional preview pages of the 2SD1620 datasheet.

Less power dissipation because of low VCE(sat), permitting more ﬂashes of light to be emitted.
Large current capacity and highly resistant to breakdown.
Excellent linearity of hFE in the region from low current to high current.
Ultrasmall size supports high-density, ultrasmall-sized hybrid IC designs Speciﬁcations Absolute Maximum Ratings at Ta=25°C Parameter Symbol Collector-to-Base Voltage Collector-to-Emitter Voltage Collector-to-Emitter Voltage Emitt.
