BCX18LT1G - Transistor

Download the BCX18LT1G datasheet PDF. This datasheet also covers the BCX17LT1G variant, as both devices belong to the same transistor family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • S and NSV Prefix for Automotive and Other.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BCX17LT1G-ONSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BCX18LT1 General Purpose Transistors Motorola Inc
BCX18 PNP general purpose transistors NXP
BCX18 Transistor Motorola
BCX18 Transistor CDIL
BCX18 PNP Transistor Kexin

Other Datasheets by onsemi

Part Number Description
BCX17LT1G Transistor
BCX19LT1G Transistor
BCX70GLT1 General Purpose Transistors
BCX71JLT1G General Purpose Transistors PNP Silicon

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

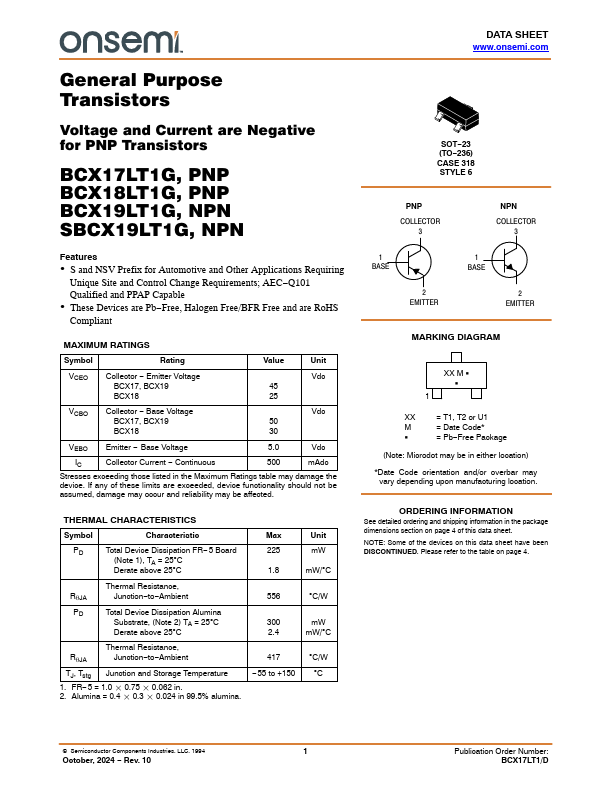

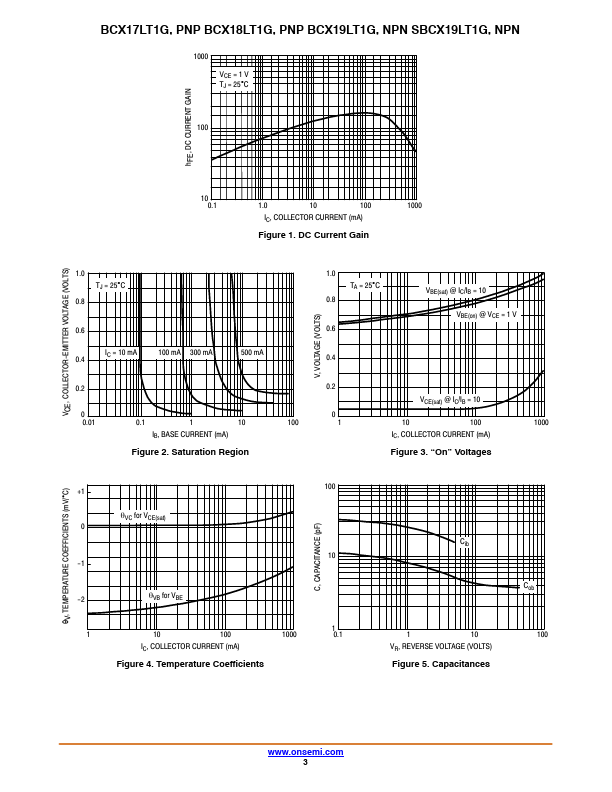

BCX17LT1G, PNP BCX18LT1G, PNP BCX19LT1G, NPN SBCX19LT1G, NPN General Purpose Transistors Voltage and Current are Negative for PNP Transistors Features • S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS Rating Symbol Value Unit Collector − Emitter Voltage BCX17, BCX19 BCX18 VCEO Vdc 45 25 Collector − Base Voltage BCX17, BCX19 BCX18 VCBO Vdc 50 30 Emitter − Base Voltage Collector Current − Continuous THERMAL CHARACTERISTICS Characteristic VEBO IC Symbol 5.0 500 Max Vdc mAdc Unit Total Device Dissipation FR− 5 Board (Note 1), TA = 25°C Derate above 25°C PD 225 mW 1.
