BD440G - Plastic Medium Power Silicon PNP Transistor

This page provides the datasheet information for the BD440G, a member of the BD442G Plastic Medium Power Silicon PNP Transistor family.

Datasheet Summary

Features

  • These Devices are Pb.
  • Free and are RoHS Compliant.

📥 Download Datasheet

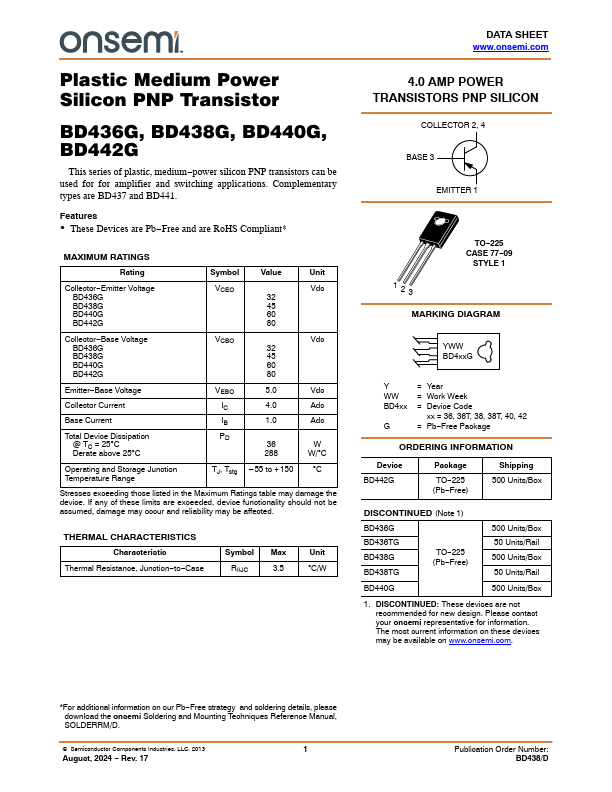

Datasheet preview – BD440G

Datasheet Details

Part number BD440G
Manufacturer ON Semiconductor
File Size 70.29 KB
Description Plastic Medium Power Silicon PNP Transistor
Datasheet download datasheet BD440G Datasheet

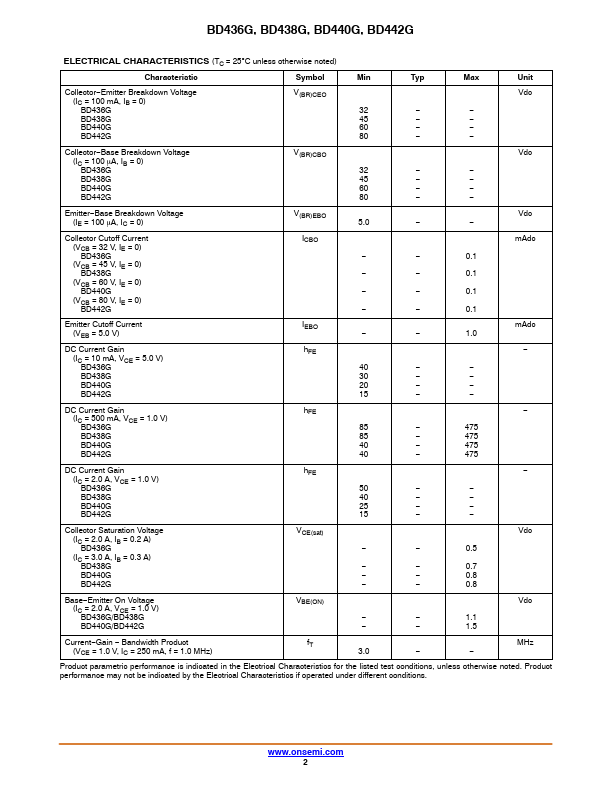

Additional preview pages of the BD440G datasheet.

📁 Similar Datasheet

  • BD440 - PNP Epitaxial Silicon Transistor (Fairchild Semiconductor)
  • BD440 - COMPLEMENTARY SILICON POWER TRANSISTORS (STMicroelectronics)
  • BD440 - Plastic Medium Power Silicon PNP Transistor (Motorola Inc)
  • BD440 - POWER TRANSISTORS (TRANSYS Electronics)
  • BD440 - Silicon PNP Power Transistors (Comset Semiconductors)
  • BD440 - COMPLEMENTARY SILICON POWER TRANSISTORS (Central Semiconductor)
  • BD440 - Plastic Encapsulate Transistors (SeCoS)
  • BD440 - EPITAXIAL SILICON POWER TRANSISTORS (CDIL)
  • BD440 - PNP Transistor (JCET)
  • BD440 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
Other Datasheets by ON Semiconductor
  • BD440 - PNP Transistor
  • BD441 - Plastic Medium Power Silicon NPN Transistor
  • BD441G - Plastic Medium-Power Silicon NPN Transistors
  • BD442 - PNP Transistor
  • BD442G - Plastic Medium Power Silicon PNP Transistor
  • BD435 - Plastic Medium Power Silicon NPN Transistor
  • BD435G - Plastic Medium-Power Silicon NPN Transistors
  • BD436 - Plastic Medium Power Silicon PNP Transistor

Full PDF Text Transcription

Click to expand full text
BD436G, BD438G, BD440G, BD442G Plastic Medium Power Silicon PNP Transistor This series of plastic, medium−power silicon PNP transistors can be used for for amplifier and switching applications. Complementary types are BD437 and BD441. Features • These Devices are Pb−Free and are RoHS Compliant* MAXIMUM RATINGS Rating Symbol Value Unit Collector−Emitter Voltage BD436G BD438G BD440G BD442G VCEO 32 45 60 80 Vdc Collector−Base Voltage BD436G BD438G BD440G BD442G VCBO 32 45 60 80 Vdc Emitter−Base Voltage Collector Current Base Current Total Device Dissipation @ TC = 25°C Derate above 25°C VEBO 5.0 Vdc IC 4.0 Adc IB 1.
