BD442G - Plastic Medium Power Silicon PNP Transistor

Datasheet Summary

Features

  • These Devices are Pb.
  • Free and are RoHS Compliant.

📥 Download Datasheet

Datasheet preview – BD442G

Datasheet Details

Part number BD442G
Manufacturer ON Semiconductor
File Size 70.29 KB
Description Plastic Medium Power Silicon PNP Transistor
Datasheet download datasheet BD442G Datasheet
Additional preview pages of the BD442G datasheet.

📁 Similar Datasheet

  • BD442 - PNP power transistor (STMicroelectronics)
  • BD442 - PNP Epitaxial Silicon Transistor (Fairchild Semiconductor)
  • BD442 - Plastic Medium Power Silicon PNP Transistor (Motorola Inc)
  • BD442 - POWER TRANSISTORS (TRANSYS Electronics)
  • BD442 - Silicon PNP Power Transistors (Comset Semiconductors)
  • BD442 - COMPLEMENTARY SILICON POWER TRANSISTORS (Central Semiconductor)
  • BD442 - Plastic Encapsulate Transistors (SeCoS)
  • BD442 - EPITAXIAL SILICON POWER TRANSISTORS (CDIL)
  • BD442 - PNP Transistor (JCET)
  • BD442 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
Other Datasheets by ON Semiconductor
  • BD442 - PNP Transistor
  • BD440 - PNP Transistor
  • BD440G - Plastic Medium Power Silicon PNP Transistor
  • BD441 - Plastic Medium Power Silicon NPN Transistor
  • BD441G - Plastic Medium-Power Silicon NPN Transistors
  • BD435 - Plastic Medium Power Silicon NPN Transistor
  • BD435G - Plastic Medium-Power Silicon NPN Transistors
  • BD436 - Plastic Medium Power Silicon PNP Transistor

Full PDF Text Transcription

Click to expand full text

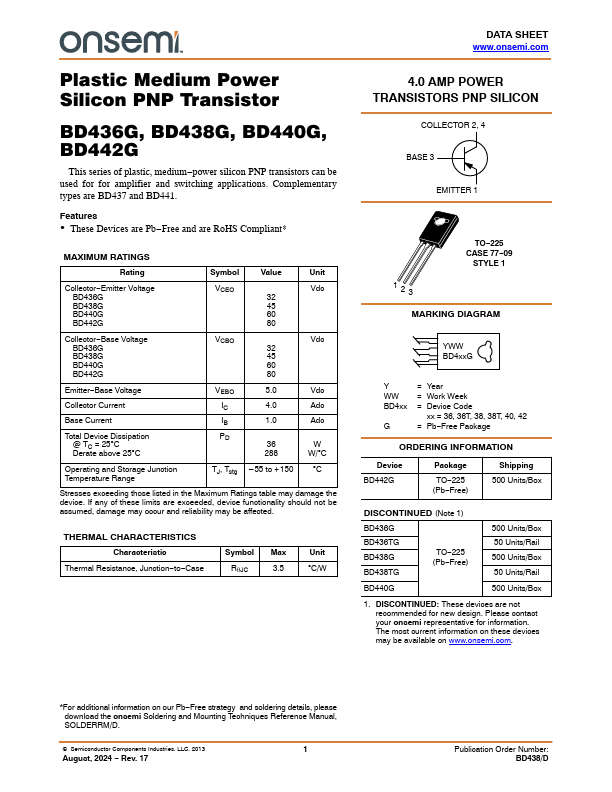

BD436G, BD438G, BD440G, BD442G Plastic Medium Power Silicon PNP Transistor This series of plastic, medium−power silicon PNP transistors can be used for for amplifier and switching applications. Complementary types are BD437 and BD441. Features • These Devices are Pb−Free and are RoHS Compliant* MAXIMUM RATINGS Rating Symbol Value Unit Collector−Emitter Voltage BD436G BD438G BD440G BD442G VCEO 32 45 60 80 Vdc Collector−Base Voltage BD436G BD438G BD440G BD442G VCBO 32 45 60 80 Vdc Emitter−Base Voltage Collector Current Base Current Total Device Dissipation @ TC = 25°C Derate above 25°C VEBO 5.0 Vdc IC 4.0 Adc IB 1.
