CAT24C64 - 64kb I2C CMOS Serial EEPROM

Datasheet Summary

Description

The CAT24C64 is a 64 Kb CMOS Serial EEPROM device, internally organized as 8192 words of 8 bits each.

Features

  • a 32.
  • byte page write buffer and supports the Standard (100 kHz), Fast (400 kHz) and Fast.
  • Plus (1 MHz) I2C protocol. External address pins make it possible to address up to eight CAT24C64 devices on the same bus. Features.
  • Supports Standard, Fast and Fast.
  • Plus I2C Protocol.
  • 1.7 V to 5.5 V Supply Voltage Range.
  • 32.
  • Byte Page Write Buffer.
  • Hardware Write Protection for Entire Memory.
  • Schmitt Triggers and Noise Suppression F.

📥 Download Datasheet

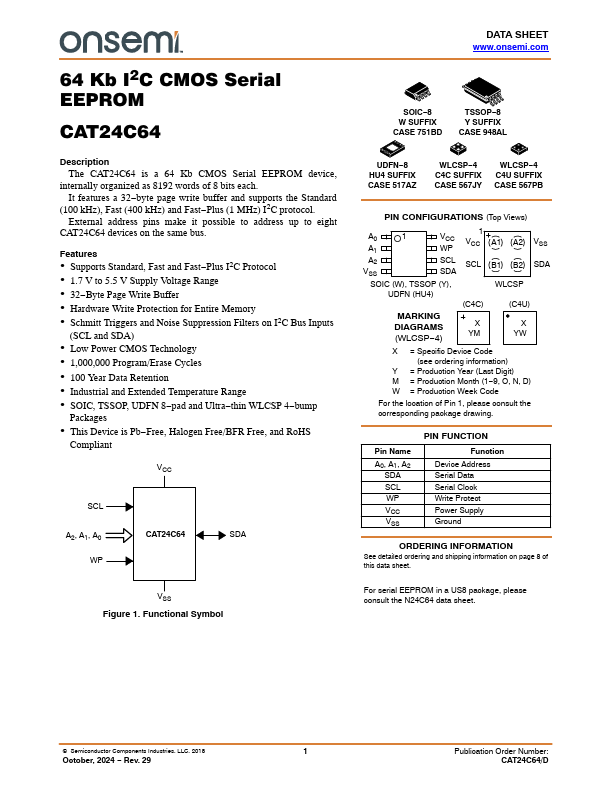

Datasheet preview – CAT24C64

Datasheet Details

Part number CAT24C64
Manufacturer ON Semiconductor
File Size 423.67 KB
Description 64kb I2C CMOS Serial EEPROM
Datasheet download datasheet CAT24C64 Datasheet

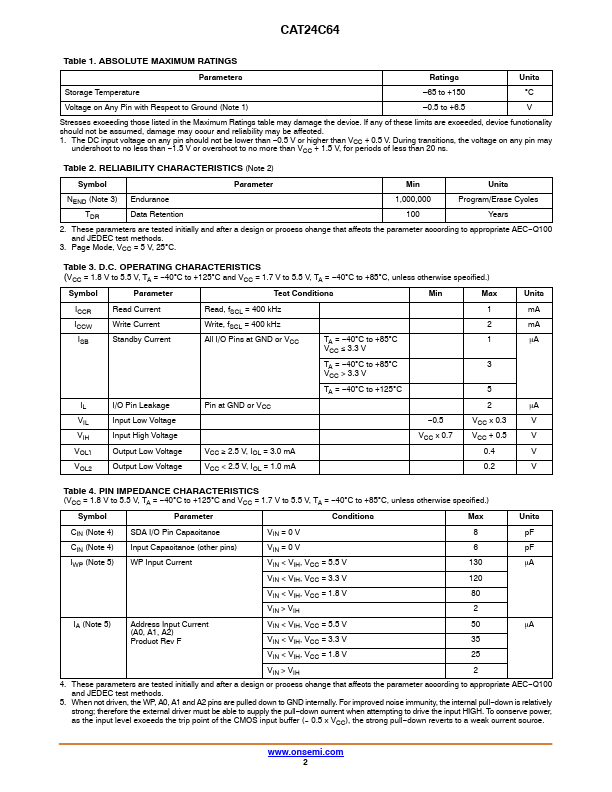

Additional preview pages of the CAT24C64 datasheet.

📁 Similar Datasheet

  • CAT24C64 - 64-Kb I2C CMOS Serial EEPROM (Catalyst Semiconductor)
  • CAT24C641 - I2C Serial CMOS E2PROM (Catalyst Semiconductor)
  • CAT24C642 - I2C Serial CMOS E2PROM (Catalyst Semiconductor)
  • CAT24C643 - I2C Serial CMOS E2PROM (Catalyst Semiconductor)
  • CAT24C00 - 128-Bit Serial EEPROM (Catalyst Semiconductor)
  • CAT24C01 - Serial EPROM (Catalyst Semiconductor)
  • CAT24C01B - 1K-Bit Serial EEPROM (Catalyst Semiconductor)
  • CAT24C01BPA-1.8TE13 - 1K-Bit Serial EEPROM (Catalyst Semiconductor)
  • CAT24C02 - Serial EPROM (Catalyst Semiconductor)
  • CAT24C021 - Serial CMOS E2PROM / Precision Reset Controller and Watchdog Timer (Catalyst Semiconductor)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
64 Kb I2C CMOS Serial EEPROM CAT24C64 Description The CAT24C64 is a 64 Kb CMOS Serial EEPROM device, internally organized as 8192 words of 8 bits each. It features a 32−byte page write buffer and supports the Standard (100 kHz), Fast (400 kHz) and Fast−Plus (1 MHz) I2C protocol. External address pins make it possible to address up to eight CAT24C64 devices on the same bus. Features • Supports Standard, Fast and Fast−Plus I2C Protocol • 1.7 V to 5.
