CAT24C64BAC4 - EEPROM

This page provides the datasheet information for the CAT24C64BAC4, a member of the CAT24C64BC4 EEPROM family.

Datasheet Summary

Description

The CAT24C64BC4 and CAT24C64BAC4 are EEPROM Serial 64 Kb I2C devices available in a 4

ball WLCSP package.

Both devices are internally organized as 8192 words of 8 bits each.

byte page write buffer and support the Standard (100 kHz), Fast (400 kHz) and Fast

Features

  • Supports Standard, Fast and Fast.
  • Plus I2C Protocol.
  • 1.7 V to 5.5 V Supply Voltage Range.
  • 32.
  • Byte Page Write Buffer.
  • Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA).
  • Low Power CMOS Technology.
  • 1,000,000 Program/Erase Cycles.
  • 100 Year Data Retention.
  • Industrial Temperature Range.
  • 4.
  • ball WLCSP Package.
  • This Device is Pb.
  • Free, Halogen Free/BFR Free.

📥 Download Datasheet

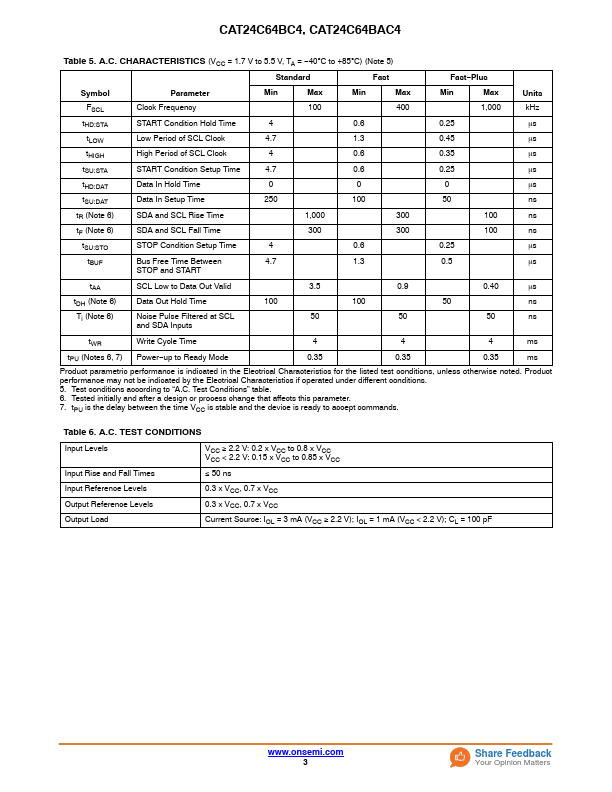

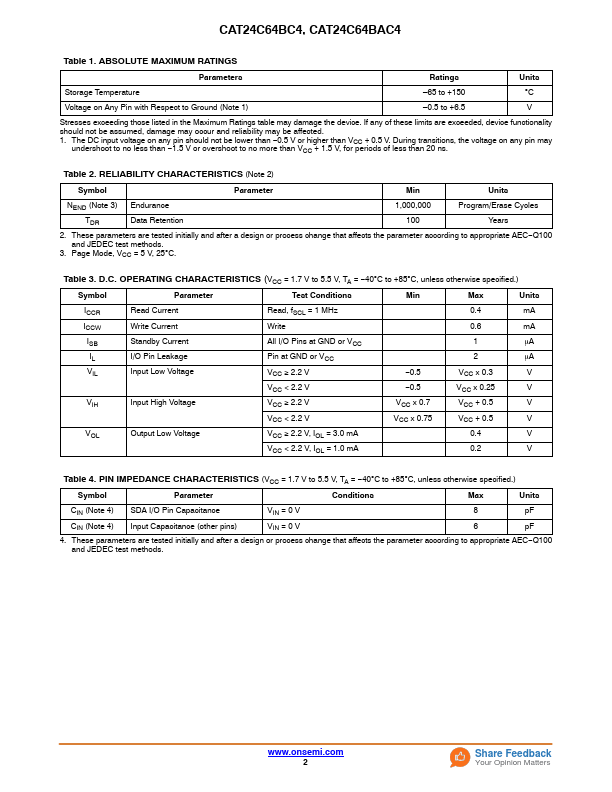

Datasheet preview – CAT24C64BAC4

📁 Similar Datasheet

  • CAT24C64 - 64-Kb I2C CMOS Serial EEPROM (Catalyst Semiconductor)
  • CAT24C641 - I2C Serial CMOS E2PROM (Catalyst Semiconductor)
  • CAT24C642 - I2C Serial CMOS E2PROM (Catalyst Semiconductor)
  • CAT24C643 - I2C Serial CMOS E2PROM (Catalyst Semiconductor)
  • CAT24C00 - 128-Bit Serial EEPROM (Catalyst Semiconductor)
  • CAT24C01 - Serial EPROM (Catalyst Semiconductor)
  • CAT24C01B - 1K-Bit Serial EEPROM (Catalyst Semiconductor)
  • CAT24C01BPA-1.8TE13 - 1K-Bit Serial EEPROM (Catalyst Semiconductor)
  • CAT24C02 - Serial EPROM (Catalyst Semiconductor)
  • CAT24C021 - Serial CMOS E2PROM / Precision Reset Controller and Watchdog Timer (Catalyst Semiconductor)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
CAT24C64BC4, CAT24C64BAC4 EEPROM Serial 64-Kb I2C in a 4-ball WLCSP Description The CAT24C64BC4 and CAT24C64BAC4 are EEPROM Serial 64−Kb I2C devices available in a 4−ball WLCSP package. Both devices are internally organized as 8192 words of 8 bits each. They feature a 32−byte page write buffer and support the Standard (100 kHz), Fast (400 kHz) and Fast−Plus (1 MHz) I2C protocol. The CAT24C64BC4 and CAT24C64BAC4 respond to a different Slave Address and are therefore suitable in applications that require two serial EEPROM devices with 4−ball WLCSP on the same I2C bus. Features • Supports Standard, Fast and Fast−Plus I2C Protocol • 1.7 V to 5.
