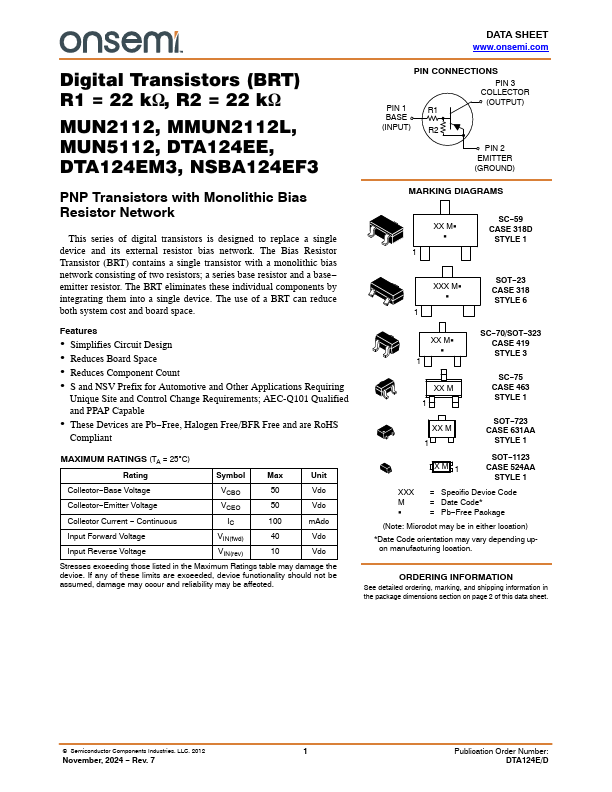

DATA SHEET .onsemi.
Digital Transistors (BRT) R1 = 22 kW, R2 = 22 kW
MUN2112, MMUN2112L, MUN5112, DTA124EE, DTA124EM3, NSBA124EF3
PIN CONNECTIONS
PIN 3
COLLECTOR
PIN 1
R1
BASE
(OUTPUT)
(INPUT) R2
PIN 2 EMITTER (GROUND)
PNP Transistors with Monolithic Bias Resistor Network
This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base- emitter resistor. The BRT eliminates these individual ponents by integrating them into a single device. The use of a BRT can reduce...
