FDS86242 Datasheet 150v 4.1a N-channel MOSFET

Manufacturer: onsemi

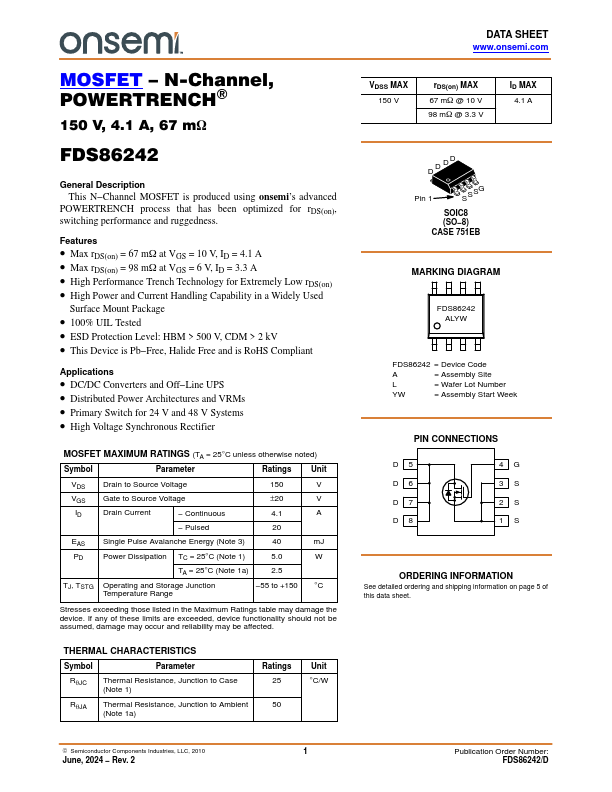

Overview: MOSFET – N-Channel, POWERTRENCH) 150 V, 4.1 A, 67 mW FDS86242.

General Description

This N−Channel MOSFET is produced using onsemi’s advanced POWERTRENCH process that has been optimized for rDS(on), switching performance and ruggedness.

Key Features

  • Max rDS(on) = 67 mW at VGS = 10 V, ID = 4.1 A.
  • Max rDS(on) = 98 mW at VGS = 6 V, ID = 3.3 A.
  • High Performance Trench Technology for Extremely Low rDS(on).
  • High Power and Current Handling Capability in a Widely Used Surface Mount Package.
  • 100% UIL Tested.
  • ESD Protection Level: HBM > 500 V, CDM > 2 kV.
  • This Device is Pb.
  • Free, Halide Free and is RoHS Compliant.
