FOD3125 - Gate Drive Optocoupler

Product Overview

ON Semiconductor

Datasheet Details

Part number	FOD3125
Manufacturer	ON Semiconductor
File Size	279.33 KB
Description	Gate Drive Optocoupler
Datasheet	FOD3125 Datasheet
Additional preview pages of the FOD3125 datasheet.

Product details

Description

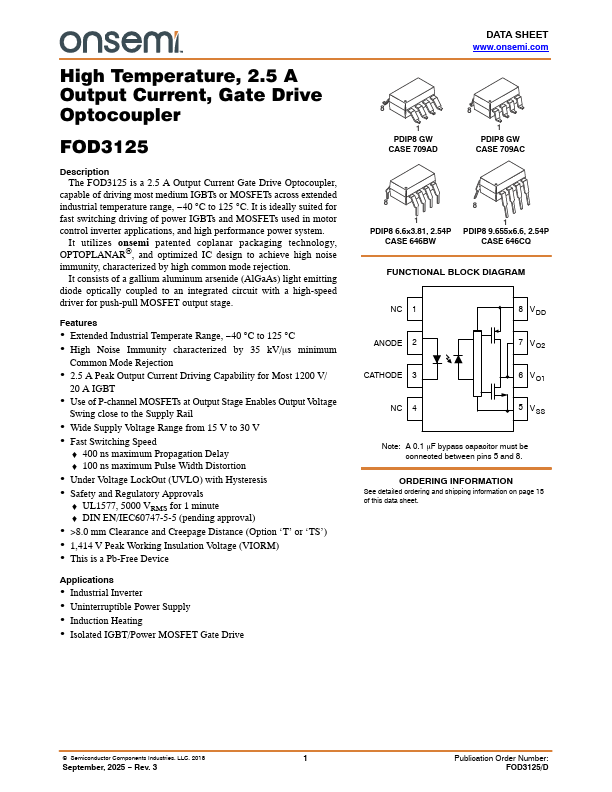

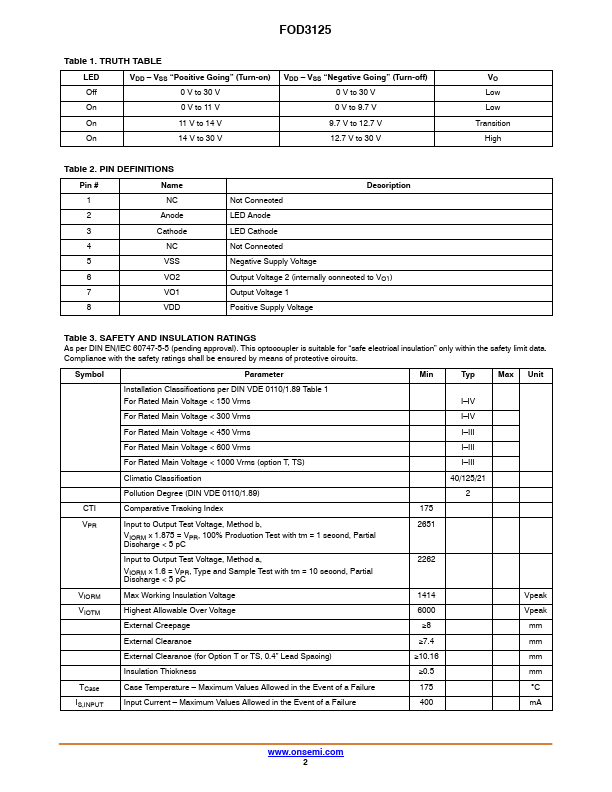

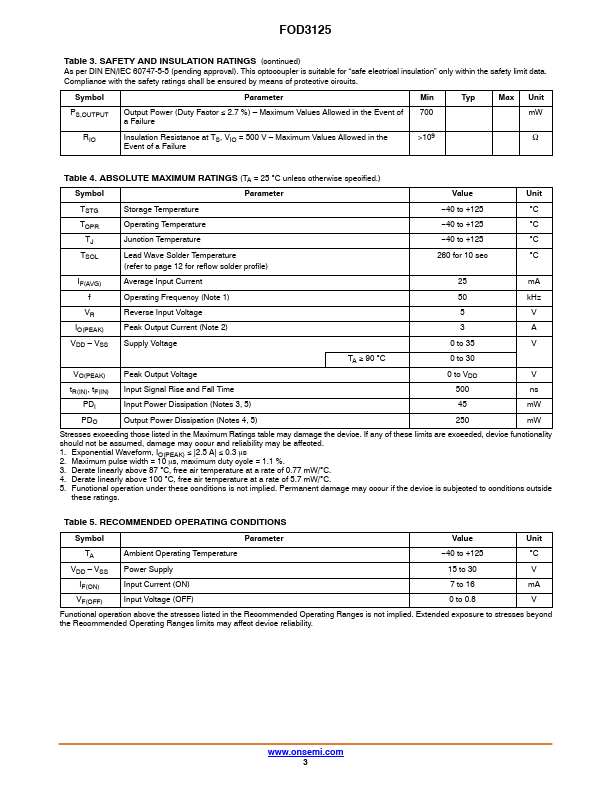

The FOD3125 is a 2.5 A Output Current Gate Drive Optocoupler, capable of driving most medium IGBTs or MOSFETs across extended industrial temperature range, 40°C to 125°C.

Features

Extended Industrial Temperate Range,.
40°C to 125°C.
High Noise Immunity characterized by 35 kV/ms minimum Common Mode Rejection.
2.5 A Peak Output Current Driving Capability for Most 1200 V/ 20 A IGBT.
Use of P.
channel MOSFETs at Output Stage Enables Output Voltage Swing close to the Supply Rail.
Wide Supply Voltage Range from 15 V to 30 V.
Fast Switching Speed.
400 ns maximum Propagation Delay.
100 ns maxi.
