FS8G

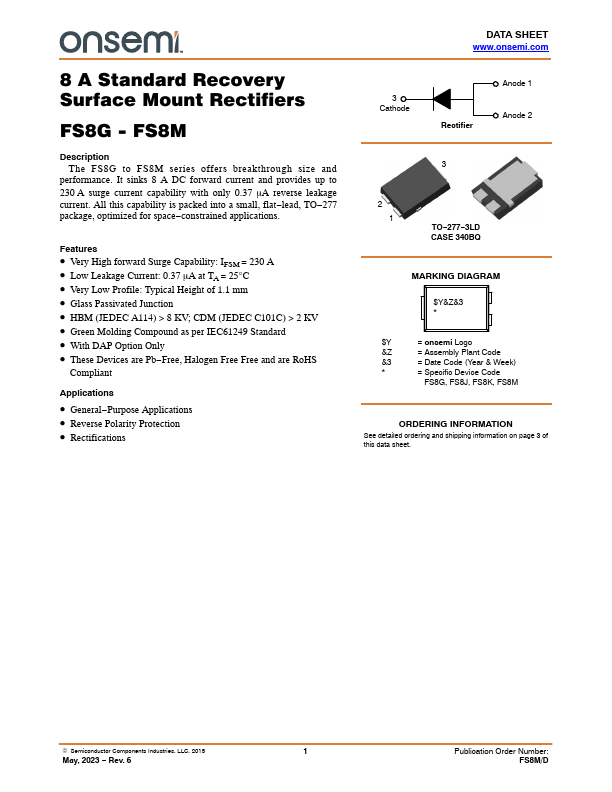

FS8G is 8A Standard Recovery Surface Mount Rectifiers manufactured by onsemi.
Description
The FS8G to FS8M series offers breakthrough size and performance. It sinks 8 A DC forward current and provides up to 230 A surge current capability with only 0.37 m A reverse leakage current. All this capability is packed into a small, flat- lead, TO- 277 package, optimized for space- constrained applications.
Features
- Very High forward Surge Capability: IFSM = 230 A
- Low Leakage Current: 0.37 m A at TA = 25°C
- Very Low Profile: Typical Height of 1.1 mm
- Glass Passivated Junction
- HBM (JEDEC A114) > 8 KV; CDM (JEDEC C101C) > 2 KV
- Green Molding pound as per IEC61249 Standard
- With DAP Option Only
- These Devices are Pb- Free, Halogen Free Free and are Ro HS pliant
Applications
- General- Purpose Applications
- Reverse Polarity Protection
- Rectifications
3 Cathode
DATA SHEET .onsemi.
Rectifier
Anode 1 Anode 2
2 1
TO- 277- 3LD CASE 340BQ
MARKING DIAGRAM
$Y&Z&3
- $Y
= onsemi Logo
&Z
= Assembly Plant Code
&3
= Date Code (Year & Week)
- = Specific Device Code
FS8G, FS8J, FS8K, FS8M

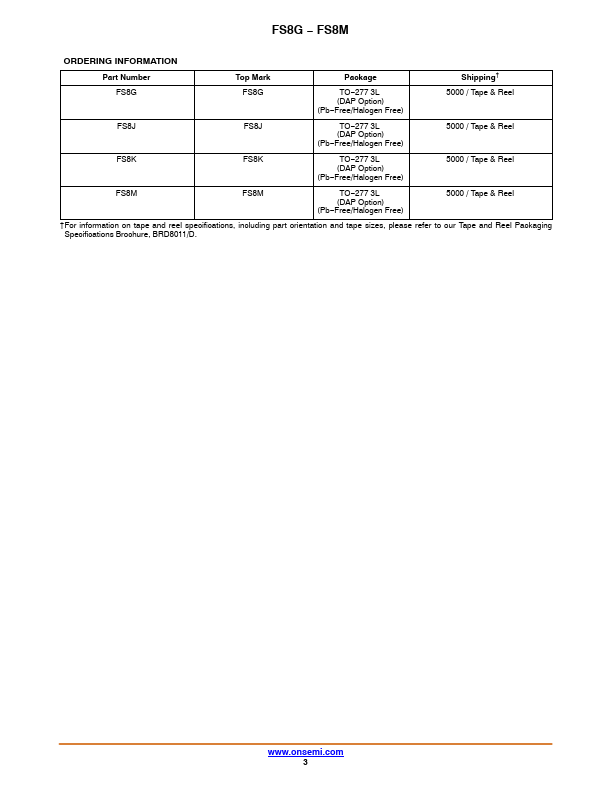

ORDERING INFORMATION
See detailed ordering and shipping information on page 3 of this data sheet.
© Semiconductor ponents Industries, LLC, 2015
May, 2023
- Rev. 6
Publication Order Number: FS8M/D
-...
