MBR120VLSF Datasheet (onsemi)

Part MBR120VLSF
Description Surface Mount Schottky Power Rectifier
Manufacturer onsemi
Size 179.00 KB
MBR120VLSF Datasheet (PDF) Download
Pricing from 0.19099 USD, available from Avnet and Newark.
🏠
onsemi

MBR120VLSF Overview

Key Specifications

Pins: 2
Height: 980 µm
Max Operating Temp: 125 °C
Min Operating Temp: -65 °C

Key Features

  • Guardring for Stress Protection
  • Optimized for Very Low Forward Voltage
  • 125°C Operating Junction Temperature
  • Epoxy Meets UL 94 V-0 @ 0.125 in
  • Package Designed for Optimal Automated Board Assembly

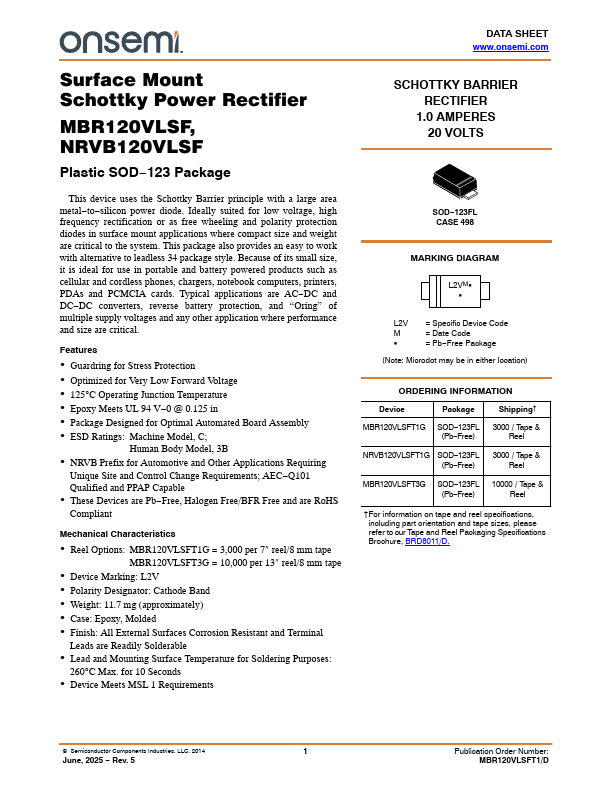

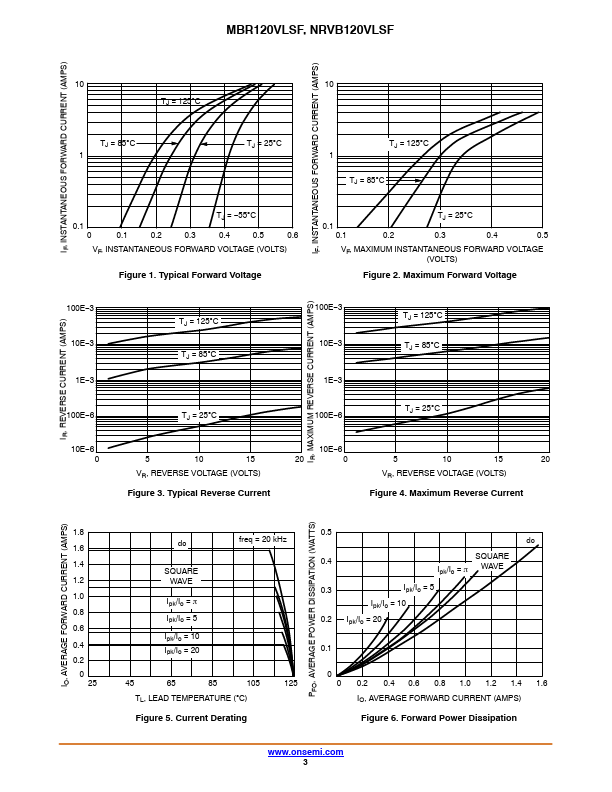

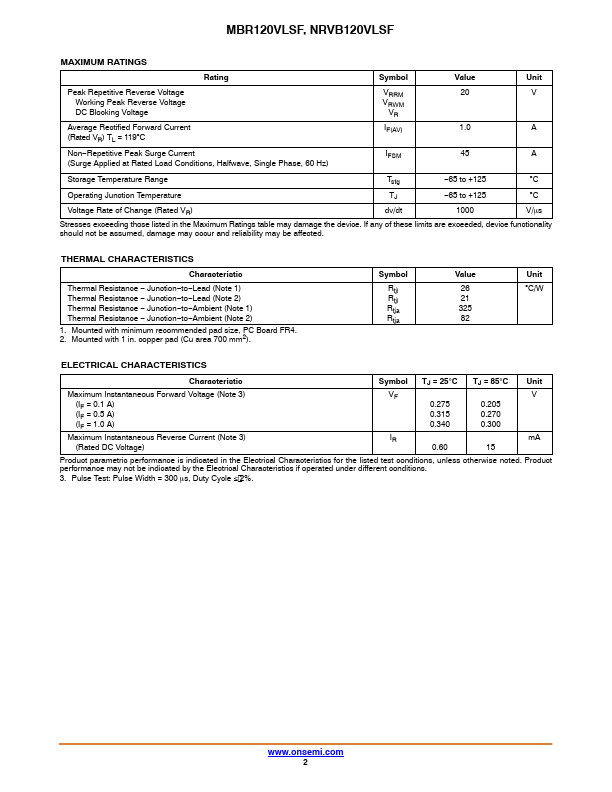

MBR120VLSF datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
Avnet 1 10000+ : 0.19099 USD
20000+ : 0.18703 USD
40000+ : 0.18324 USD
80000+ : 0.17842 USD		 View Offer
Avnet 3099 1+ : 0.639 USD
50+ : 0.439 USD
100+ : 0.361 USD
250+ : 0.322 USD		 View Offer
