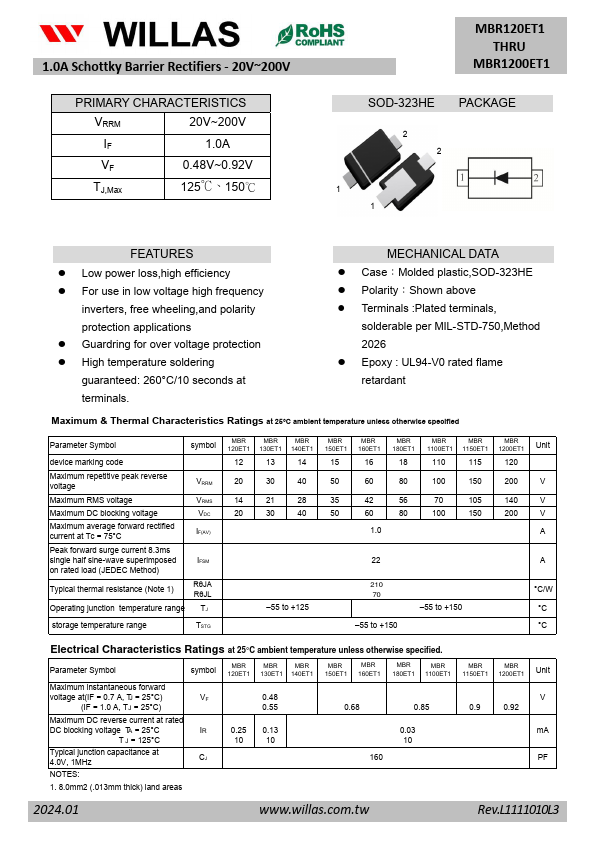

Datasheet Summary
1.0A Schottky Barrier Rectifiers
- 20V~200V
PRIMARY CHARACTERISTICS
VRRM
20V~200V
1.0A
0.48V~0.92V
TJ,Max
125℃、150℃
MBR120ET1 THRU
MBR1200ET1

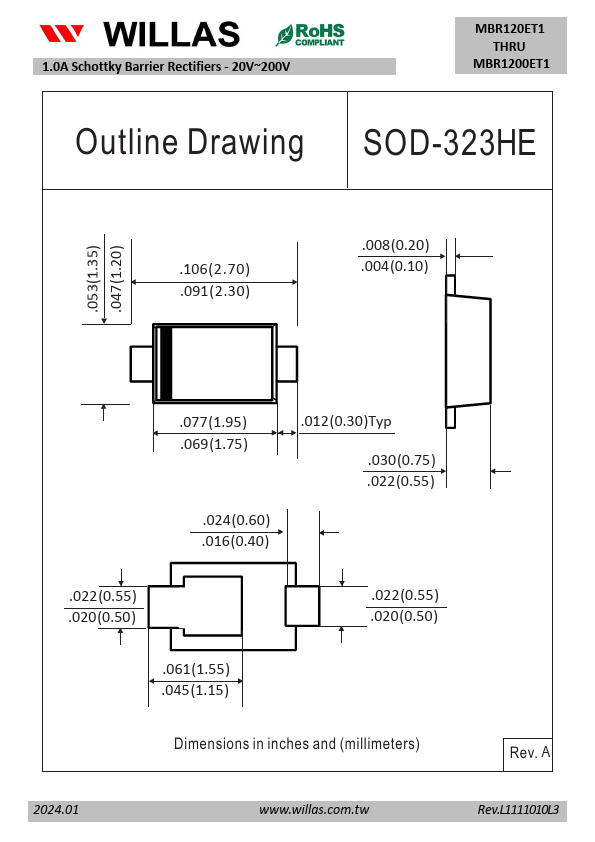

SOD-323HE PACKAGE
2 2
1 1
Features
- Low power loss,high efficiency
- For use in low voltage high frequency inverters, free wheeling,and polarity protection applications
- Guardring for over voltage protection
- High temperature soldering guaranteed: 260°C/10 seconds at terminals.
MECHANICAL DATA
- Case：Molded plastic,SOD-323HE
- Polarity：Shown above
- Terminals :Plated terminals, solderable per MIL-STD-750,Method 2026
- Epoxy : UL94-V0 rated flame retardant
Maximum & Thermal Characteristics Ratings at 25°C ambient temperature...
