MBR130 Datasheet | onsemi

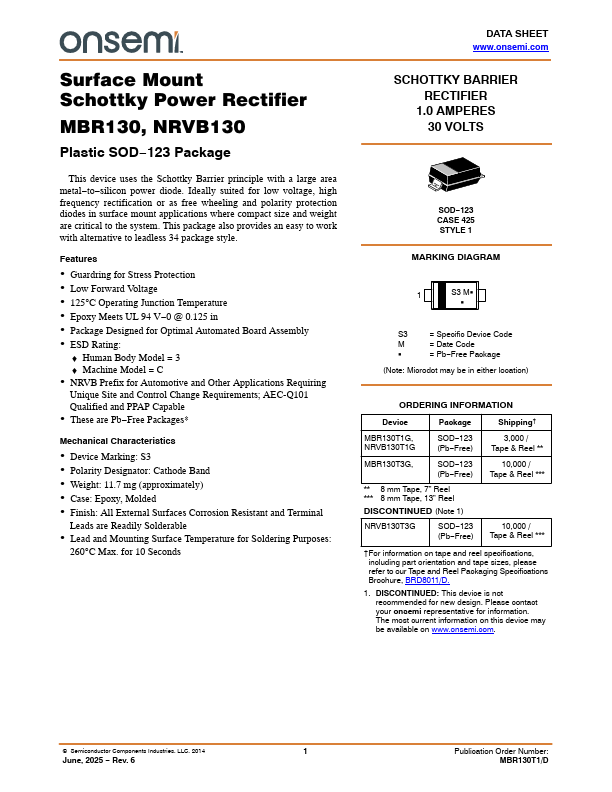

Surface Mount Schottky Power Rectifier MBR130, NRVB130 Plastic SOD- 123 Package This device uses the Schottky Barrier principle with a large area metal- to- silicon power diode. Ideally suited for low voltage, high frequency rectification or as free wheeling and polarity protection diodes in surface mount applications where pact size and weight are critical to the system. This package also provides an easy to work with alternative to leadless 34 package style. Features - Guardring for Stress Protection - Low Forward Voltage - 125C Operating Junction Temperature - Epoxy Meets UL 94 V- 0 @ 0.125 in - Package Designed for Optimal Automated Board Assembly - ESD Rating:  Human Body Model = 3 ...
