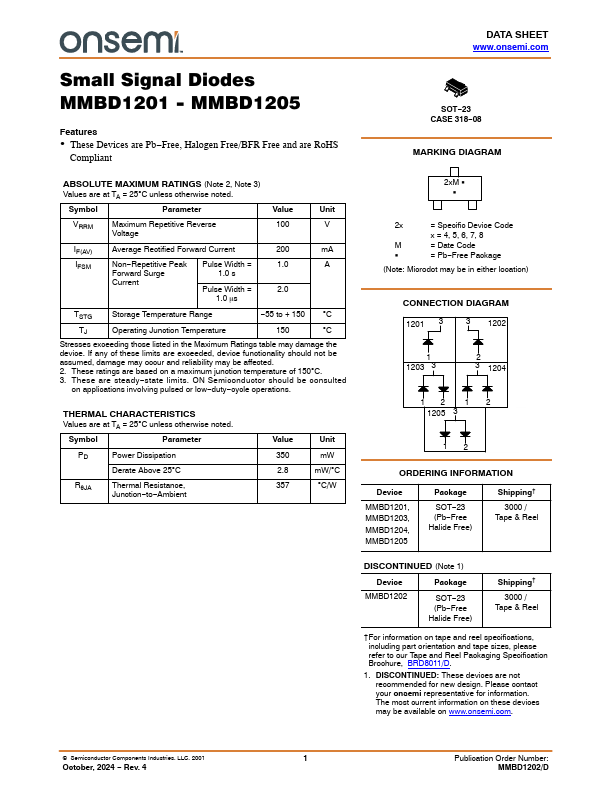

Features - These Devices are Pb- Free, Halogen Free/BFR Free and are Ro HS pliant SOT- 23 CASE 318- 08 MARKING DIAGRAM ABSOLUTE MAXIMUM RATINGS (Note 2, Note 3) Values are at TA = 25C unless otherwise noted. Symbol Parameter Value Unit VRRM Maximum Repetitive Reverse Voltage IF(AV) Average Rectified Forward Current 200 m A IFSM Non- Repetitive Peak Pulse Width = Forward Surge 1.0 s Current Pulse Width = 1.0 ms TSTG Storage Temperature Range - 55 to + 150 C Operating Junction Temperature C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 2. These ratings are based on a maximum junction temperature of 150C. 3. These are steady- state limits. ON Semiconductor should be consulted on applications involving pulsed or low- duty- cycle operations. THERMAL CHARACTERISTICS Values are at TA = 25C unless otherwise noted. Symbol Parameter Power Dissipation Derate Above 25C RJA Thermal Resistance, Junction- to-...
