NCV33078 - Low Noise Dual/Quad Operational Amplifiers

Product Overview

ON Semiconductor

📥 Download Datasheet

NCV33078 Low Noise Dual/Quad Operational Amplifiers by ON Semiconductor - Datasheet Preview — Datasheet preview – NCV33078

Datasheet Details

Part number	NCV33078
Manufacturer	ON Semiconductor
File Size	405.17 KB
Description	Low Noise Dual/Quad Operational Amplifiers
Datasheet	NCV33078 Datasheet

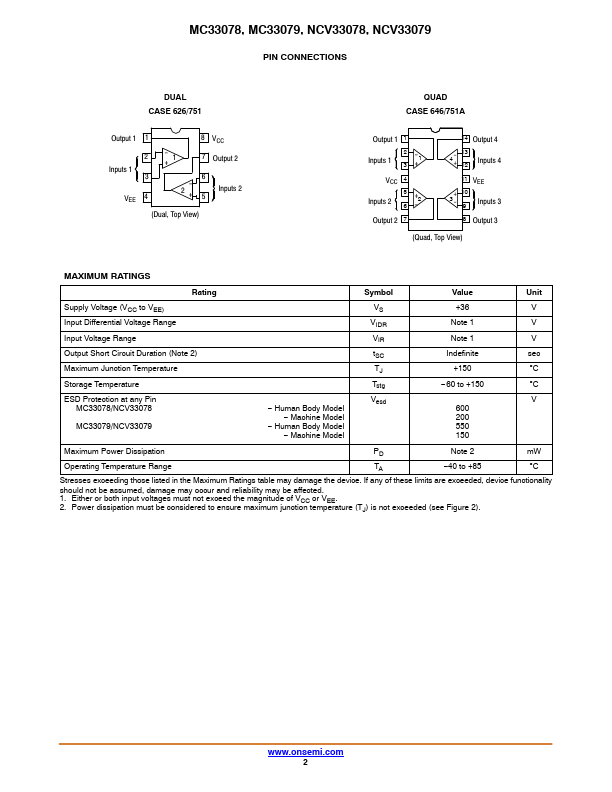

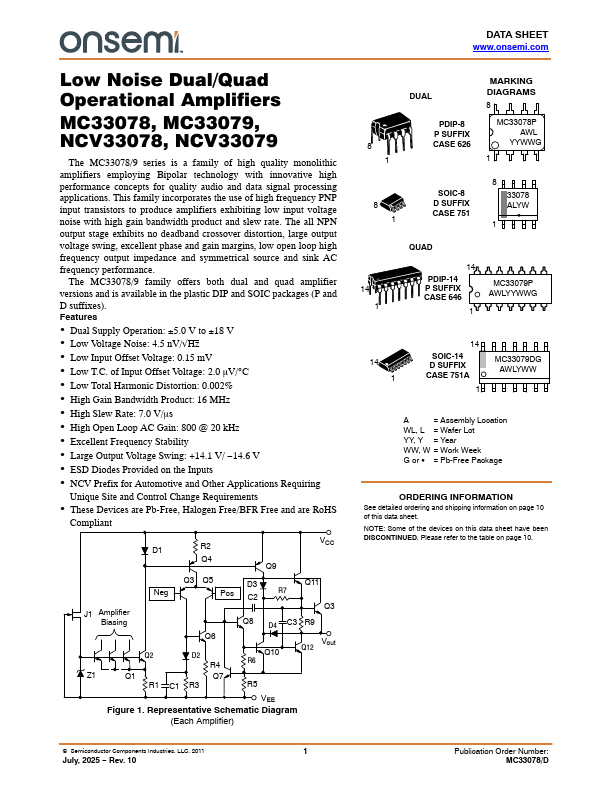

Additional preview pages of the NCV33078 datasheet.

Product details

Features

Dual Supply Operation: $5.0 V to $18 V.
Low Voltage Noise: 4.5 nV/ǸHz.
Low Input Offset Voltage: 0.15 mV.
Low T. C. of Input Offset Voltage: 2.0 mV/°C.
Low Total Harmonic Distortion: 0.002%.
High Gain Bandwidth Product: 16 MHz.
High Slew Rate: 7.0 V/ms.
High Open Loop AC Gain: 800 @ 20 kHz.
Excellent Frequency Stability.
Large Output Voltage Swing: +14.1 V/.
14.6 V.
ESD Diodes Provided on t.
