NCV33079 - Low Noise Dual/Quad Operational Amplifiers

Download the NCV33079 datasheet PDF. This datasheet also covers the NCV33078 variant, as both devices belong to the same low noise dual/quad operational amplifiers family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Dual Supply Operation: $5.0 V to $18 V.
  • Low Voltage Noise: 4.5 nV/ǸHz.
  • Low Input Offset Voltage: 0.15 mV.
  • Low T. C. of Input Offset Voltage: 2.0 mV/°C.
  • Low Total Harmonic Distortion: 0.002%.
  • High Gain Bandwidth Product: 16 MHz.
  • High Slew Rate: 7.0 V/ms.
  • High Open Loop AC Gain: 800 @ 20 kHz.
  • Excellent Frequency Stability.
  • Large Output Voltage Swing: +14.1 V/.
  • 14.6 V.
  • ESD Diodes Provided on t.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (NCV33078-ONSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number NCV33079
Manufacturer onsemi
File Size 405.17 KB
Description Low Noise Dual/Quad Operational Amplifiers
Datasheet download datasheet NCV33079 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NCV3025833 Smart Power Stage onsemi
NCV2902 Single Supply Quad Operational Amplifiers ON
NCV4279 5.0V Micropower 150mA LDO Linear Regulator ON
NCV51153 4.5-A/9-A Isolated Single Channel Gate Driver onsemi
NCV51563 4.5-A/9-A Isolated Dual Channel Gate Driver onsemi

Other Datasheets by onsemi

Part Number Description
NCV33072 Single Supply 3.0 V to 44 V Operational Amplifiers
NCV33072A Single Supply 3.0 V to 44 V Operational Amplifiers
NCV33074 Single Supply 3.0 V to 44 V Operational Amplifiers
NCV33074A Single Supply 3.0 V to 44 V Operational Amplifiers
NCV33078 Low Noise Dual/Quad Operational Amplifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

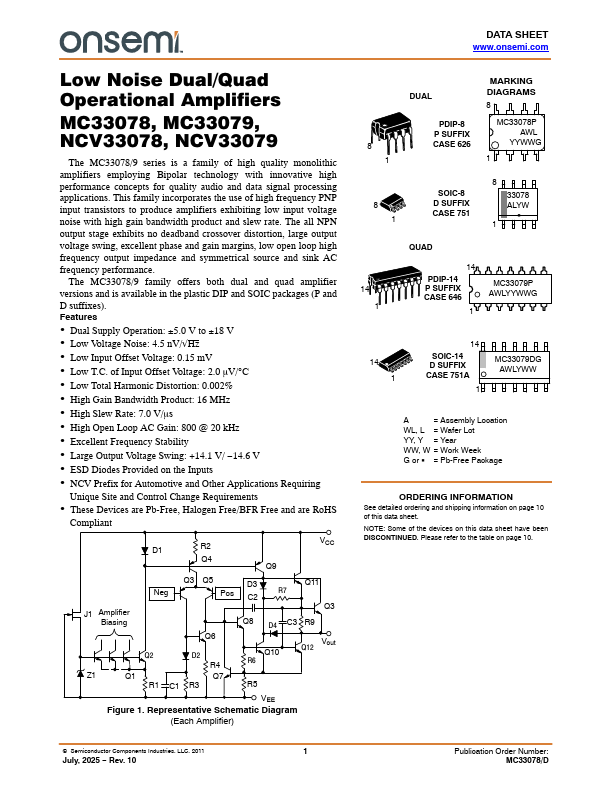

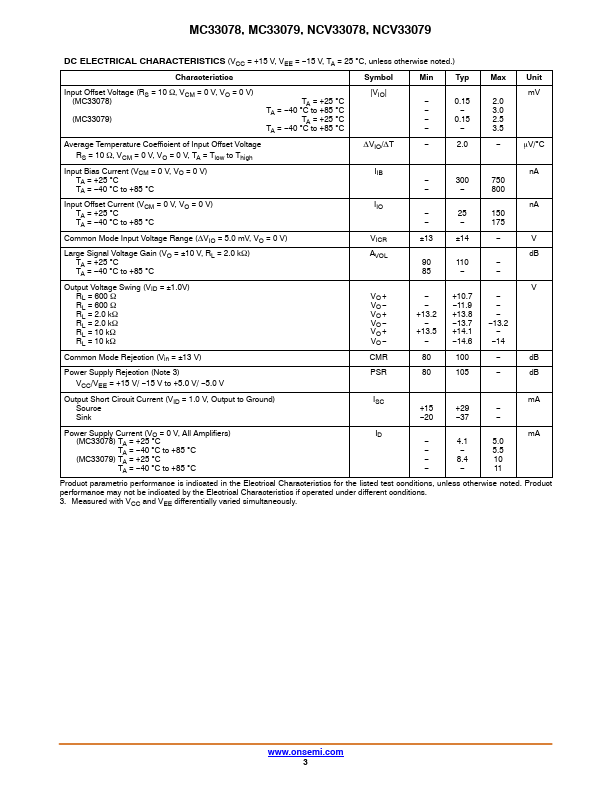

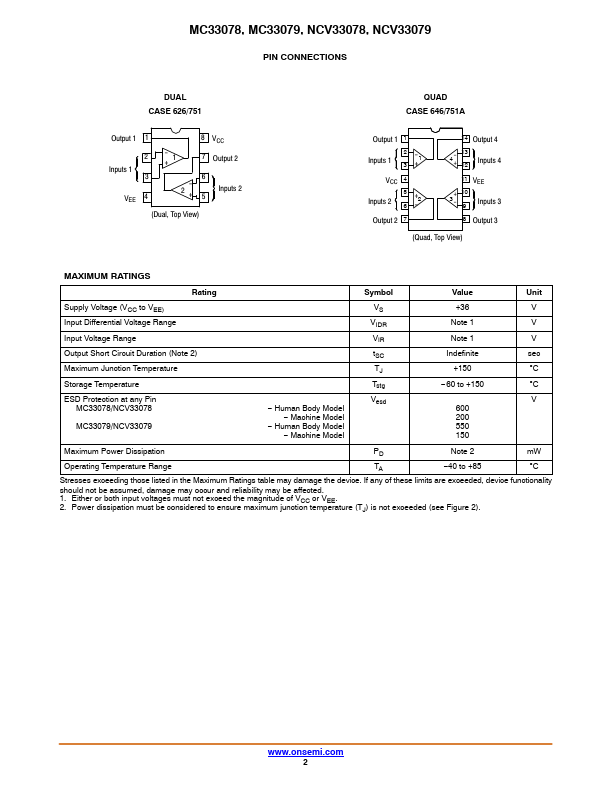

MC33078, MC33079, NCV33078, NCV33079 Low Noise Dual/Quad Operational Amplifiers The MC33078/9 series is a family of high quality monolithic amplifiers employing Bipolar technology with innovative high performance concepts for quality audio and data signal processing applications. This family incorporates the use of high frequency PNP input transistors to produce amplifiers exhibiting low input voltage noise with high gain bandwidth product and slew rate. The all NPN output stage exhibits no deadband crossover distortion, large output voltage swing, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source and sink AC frequency performance.
