Download NRVB120VLSF Datasheet PDF

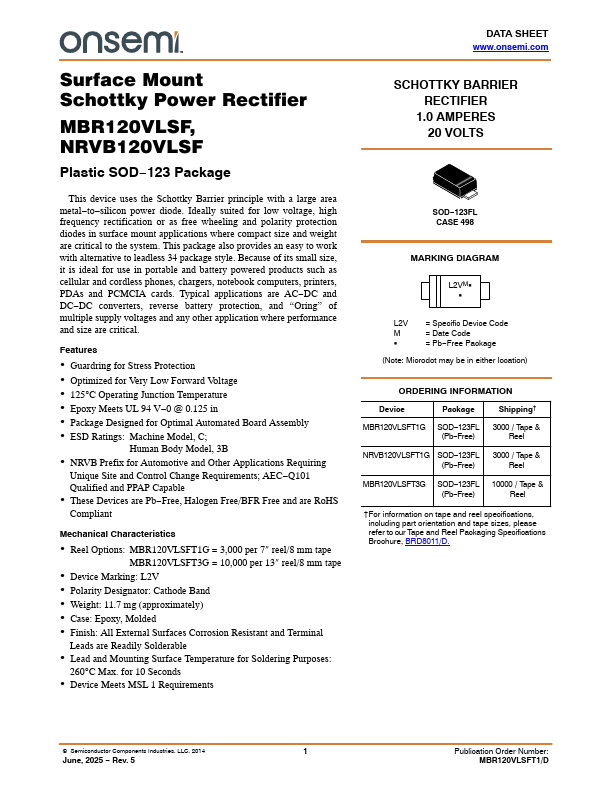

NRVB120VLSF datasheet preview

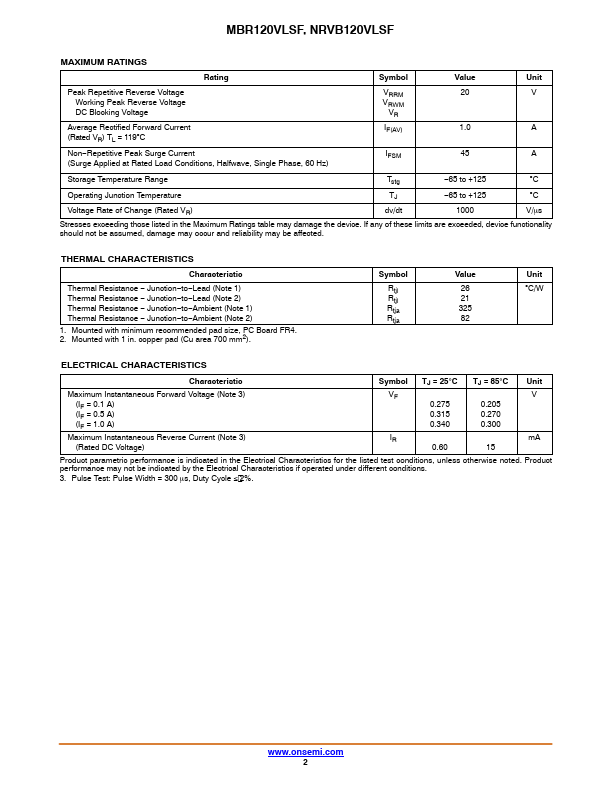

NRVB120VLSF page 2
Page 2

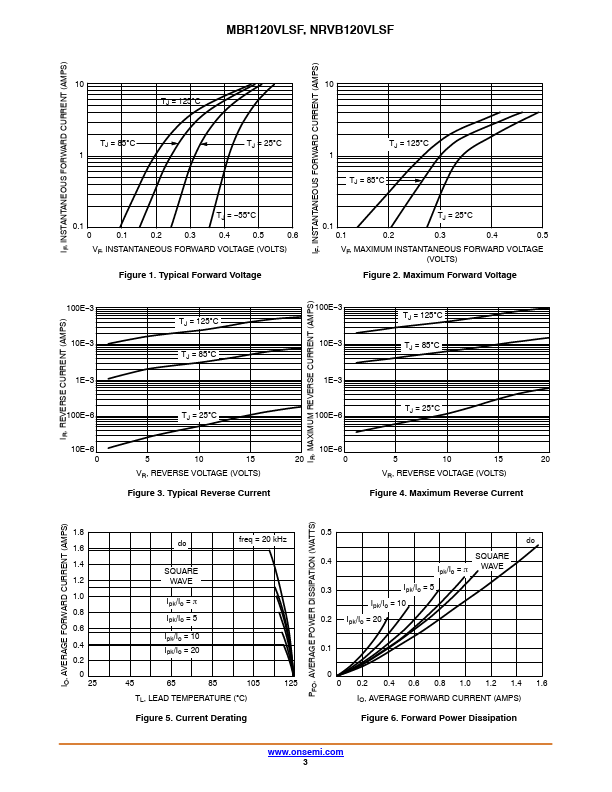

NRVB120VLSF page 3
Page 3

NRVB120VLSF Key Features

  • Guardring for Stress Protection
  • Optimized for Very Low Forward Voltage
  • 125C Operating Junction Temperature
  • Package Designed for Optimal Automated Board Assembly
  • ESD Ratings: Machine Model, C
  • NRVB Prefix for Automotive and Other

Related onsemi Datasheets

Part Number Description
NRVB120ESF Surface Mount Schottky Power Rectifier
NRVB120LSF Surface Mount Schottky Power Rectifier
NRVB1240MFS SWITCHMODE Power Rectifiers
NRVB1240MFST1G SWITCHMODE Power Rectifiers
NRVB1240MFST3G SWITCHMODE Power Rectifiers

NRVB120VLSF Description

Surface Mount Schottky Power Rectifier MBR120VLSF, NRVB120VLSF Plastic SOD−123 Package This device uses the Schottky Barrier principle with a large area metal−to−silicon power diode. Ideally suited for low voltage, high frequency rectification or as free wheeling and polarity protection diodes in surface mount applications where pact size and weight are critical to the system. This package also provides an easy to...
