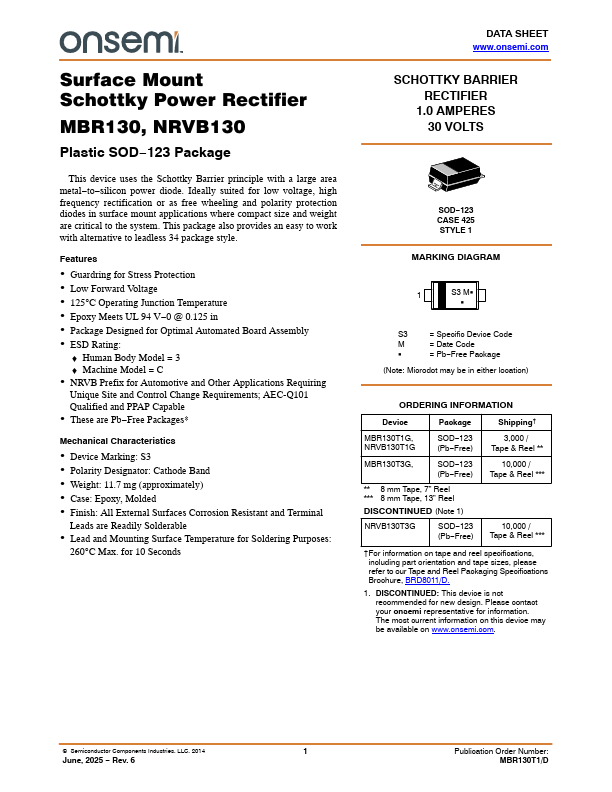

Surface Mount Schottky Power Rectifier MBR130, NRVB130 Plastic SOD- 123 Package This device uses the Schottky Barrier principle with a large area metal- to- silicon power diode. Ideally suited for low voltage, high frequency rectification or as free wheeling and polarity protection diodes in surface mount applications where pact size and weight are critical to the system. This package also provides an easy to work with alternative to leadless 34 package style. Features - Guardring for Stress Protection - Low Forward Voltage - 125C Operating Junction Temperature - Epoxy Meets UL 94 V- 0 @ 0.125 in - Package Designed for Optimal Automated Board Assembly - ESD Rating:  Human Body Model = 3  Machine Model = C - NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable - These are Pb- Free Packages- Mechanical Characteristics - Device Marking: S3 - Polarity Designator: Cathode Band - Weight: 11.7 mg (approximately) - Case: Epoxy, Molded - Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable - Lead and Mounting Surface Temperature for Soldering Purposes: 260C Max. for 10 Seconds DATA SHEET .onsemi. SCHOTTKY BARRIER RECTIFIER 1.0 AMPERES 30 VOLTS SOD- 123 CASE 425 STYLE 1 MARKING DIAGRAM S3...
