NSQA6V8AW5T2 - ESD Protection Diode

Datasheet Summary

Description

of survivability specs.

Rev.

Features

Low Clamping Voltage.
Small SC-88A SMT Package.
Stand Off Voltage: 5 V.
Low Leakage Current < 1 mA.
Four Separate Unidirectional Configurations for Protection.
ESD Protection: IEC61000-4-2: Level 4 MILSTD 883C - Method 3015-6: Class 3.
These Devices are Pb-Free and are RoHS Compliant Benefits.
Provides Protection for ESD Industry Standards: IEC 61000, HBM.
Minimize Power Consumption of the System.
Minimize PCB Board Space Typical.

ON Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	NSQA6V8AW5T2
Manufacturer	ON Semiconductor
File Size	211.72 KB
Description	ESD Protection Diode
Datasheet	NSQA6V8AW5T2 Datasheet

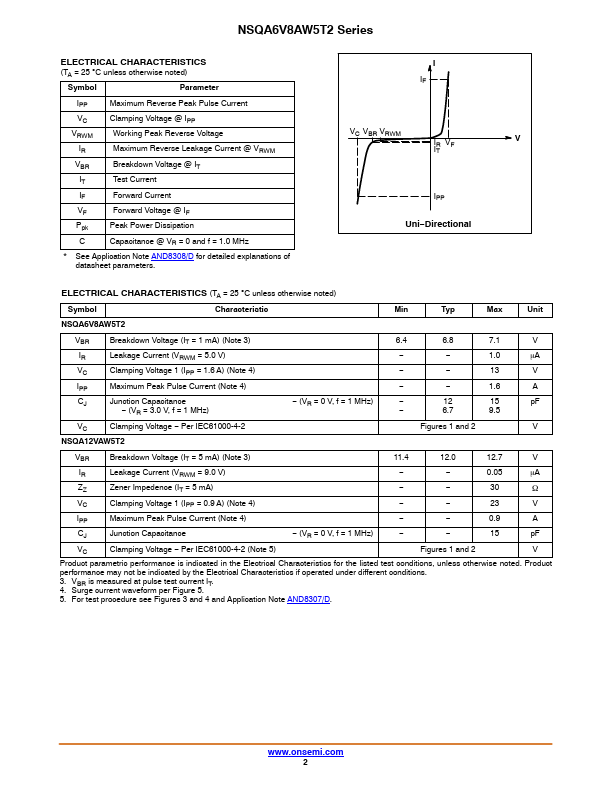

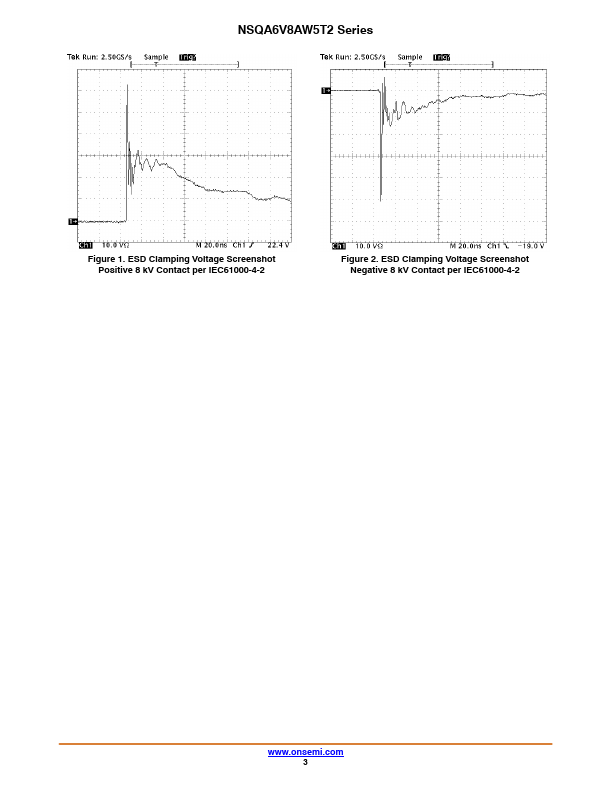

Additional preview pages of the NSQA6V8AW5T2 datasheet.

📁 Similar Datasheet

NSQ03A02L - Schottky Barrier Diode (Nihon Inter Electronics)
NSQ03A03L - SBD (Nihon Inter Electronics)
NSQ03A03L - Schottky Barrier Diode (Kyocera)
NSQ03A04 - Schottky Barrier Diode (Kyocera)
NSQ03A04 - SBD (Nihon Inter Electronics)
NSQ03A06 - Schottky Barrier Diode (Kyocera)
NSQ03A06 - SBD (Nihon Inter Electronics Corporation)
NSQ3724 - NPN Transistor (NES)
NSQ3725 - NPN Transistor (NES)

Other Datasheets by ON Semiconductor

NSQA12VAW5T2 - Low Capacitance Quad Array

Full PDF Text Transcription

Click to expand full text

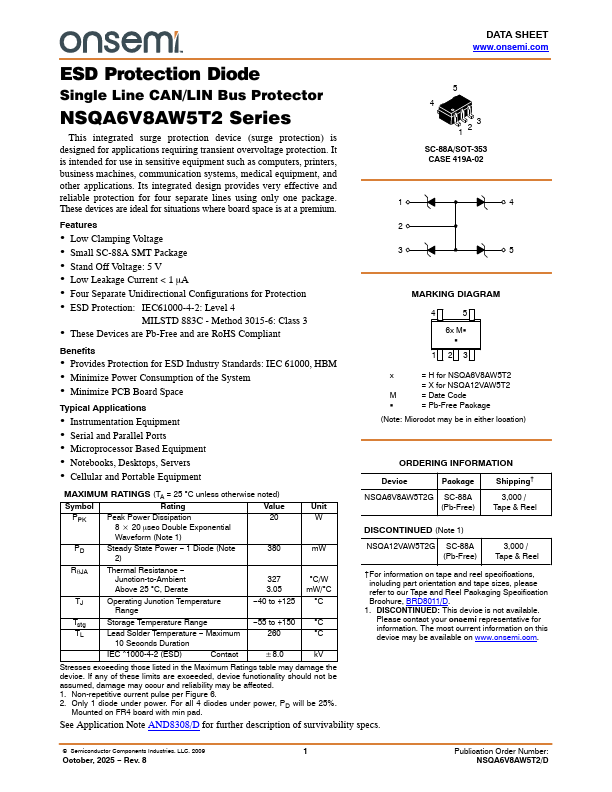

DATA SHEET www.onsemi.com ESD Protection Diode Single Line CAN/LIN Bus Protector NSQA6V8AW5T2 Series This integrated surge protection device (surge protection) is designed for applications requiring transient overvoltage protection. It is intended for use in sensitive equipment such as computers, printers, business machines, communication systems, medical equipment, and other applications. Its integrated design provides very effective and reliable protection for four separate lines using only one package. These devices are ideal for situations where board space is at a premium.
