NTMD4820N - Power MOSFET

Product Overview

ON Semiconductor

📥 Download Datasheet

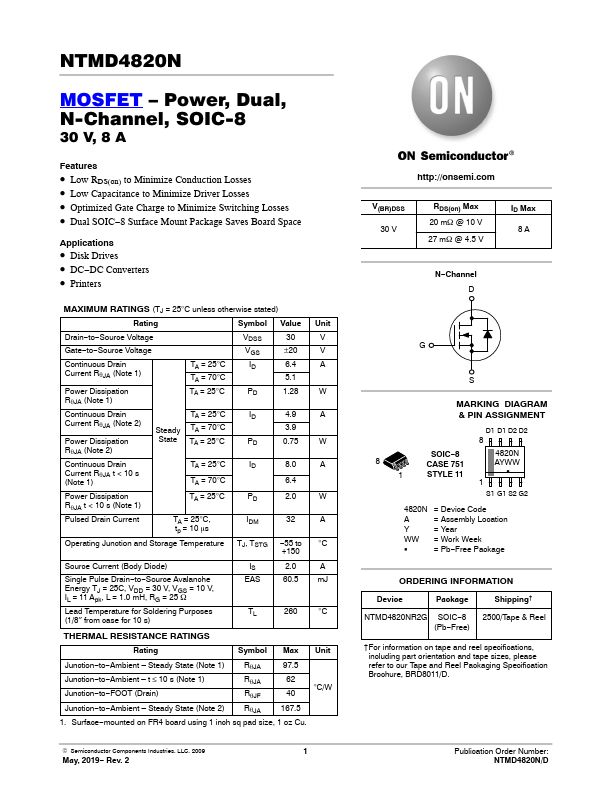

NTMD4820N Power MOSFET by ON Semiconductor - Datasheet Preview — Datasheet preview – NTMD4820N

Datasheet Details

Part number	NTMD4820N
Manufacturer	ON Semiconductor
File Size	106.75 KB
Description	Power MOSFET
Datasheet	NTMD4820N Datasheet

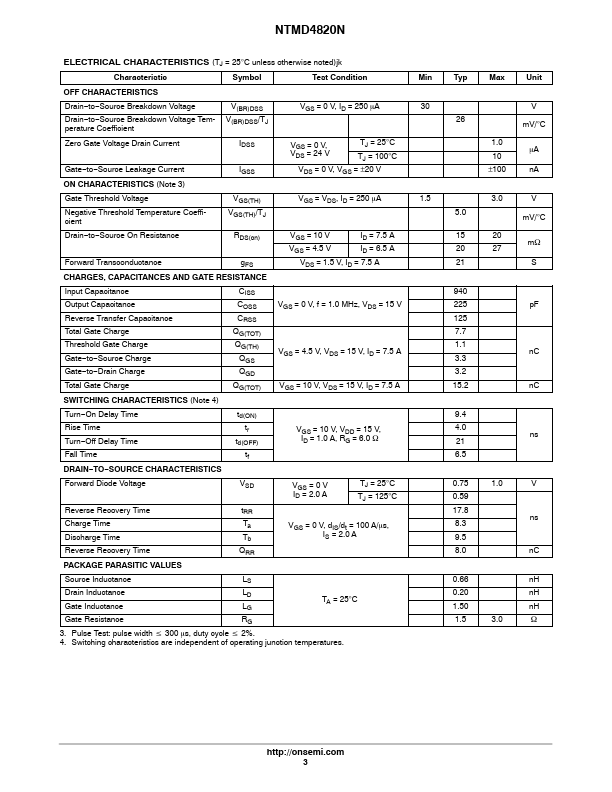

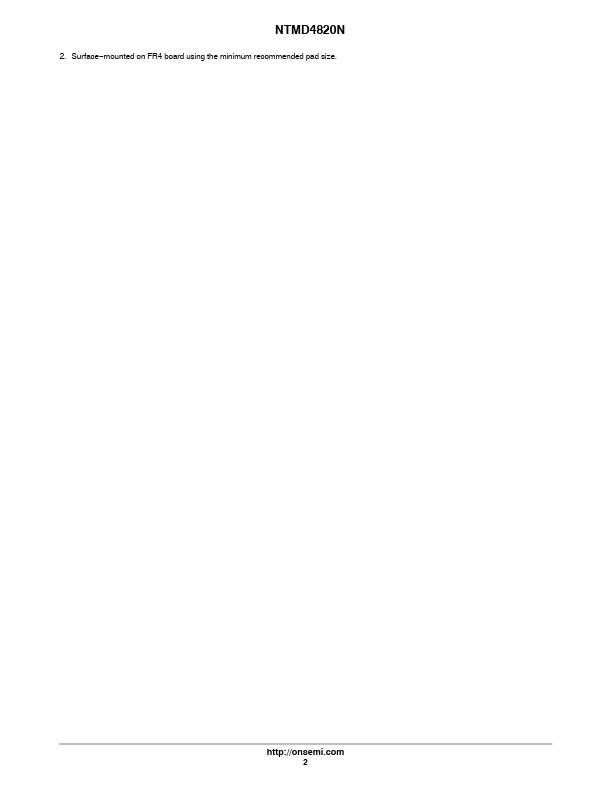

Additional preview pages of the NTMD4820N datasheet.

Product details

Features

30 V, 8 A, Dual N-Channel, SOIC-8 www. DataSheet4U. com.
ăLow RDS(on) to Minimize Conduction Losses.
ăLow Capacitance to Minimize Driver Losses.
ăOptimized Gate Charge to Minimize Switching Losses.
ăDual SOIC-8 Surface Mount Package Saves Board Space.
