NTMD6P02 - Power MOSFET

Features

  • Ultra Low RDS(on).
  • Higher Efficiency Extending Battery Life.
  • Logic Level Gate Drive.
  • Miniature Dual SOIC.
  • 8 Surface Mount Package.
  • Diode Exhibits High Speed, Soft Recovery.
  • Avalanche Energy Specified.
  • These Devices are Pb.
  • Free and are RoHS Compliant.
  • NVMD Prefix for Automotive and Other.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NTMD3P03R2G Dual -30V P-ChanneI MOSFET UMW
NTMD3P03R2G Dual P-Channel 30V MOSFET VBsemi
NTM164M21 LCD ETC
NTM164M21C LCD ETC
NTM88H025S Tire pressure monitor sensor NXP

Other Datasheets by onsemi

Part Number Description
NTMD6P02R2 Power MOSFET
NTMD6601NR2G Power MOSFET
NTMD6N02R2 Power MOSFET
NTMD6N03R2 Power MOSFET
NTMD6N04 Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

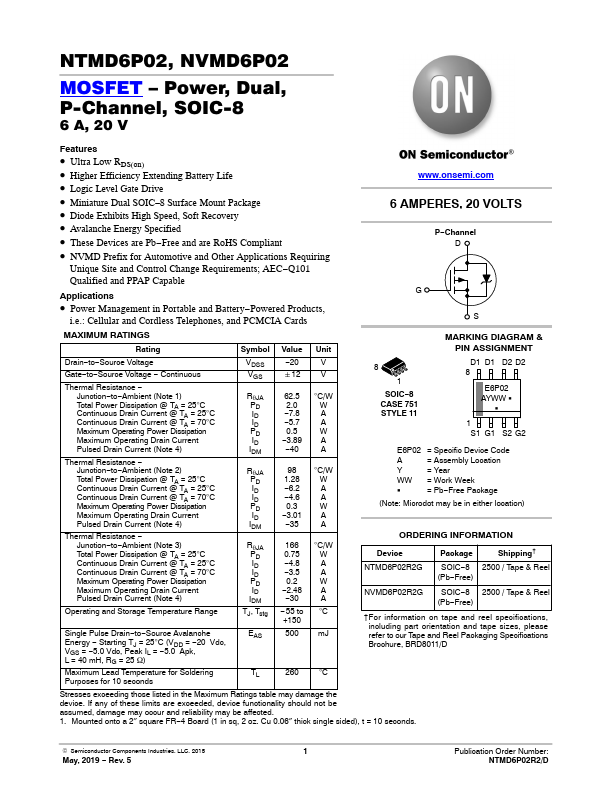

NTMD6P02, NVMD6P02 Power MOSFET 6 A, 20 V, P−Channel SOIC−8, Dual Features • Ultra Low RDS(on) • Higher Efficiency Extending Battery Life • Logic Level Gate Drive • Miniature Dual SOIC−8 Surface Mount Package • Diode Exhibits High Speed, Soft Recovery • Avalanche Energy Specified • These Devices are Pb−Free and are RoHS Compliant • NVMD Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable www.onsemi.com 6 AMPERES, 20 VOLTS P−Channel D Applications • Power Management in Portable and Battery−Powered Products, i.e.
