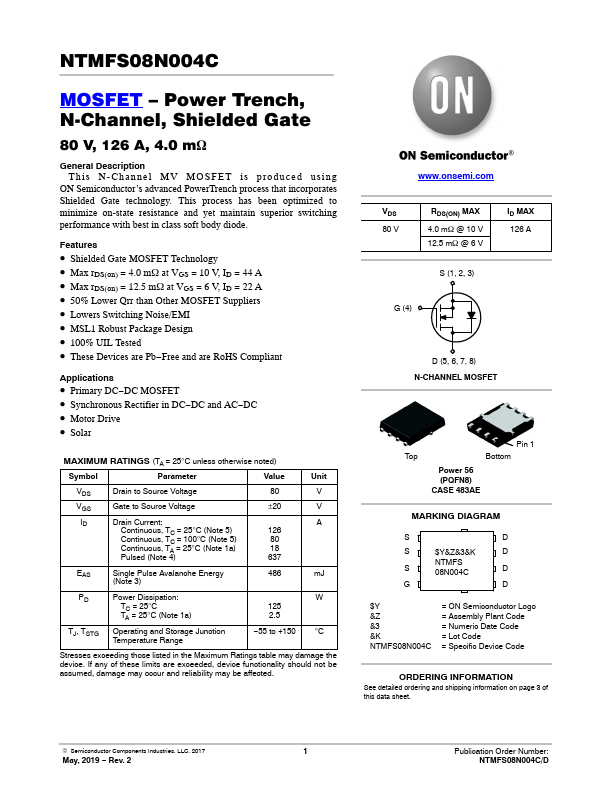

NTMFS08N004C Datasheet 80v 126a N-channel Power MOSFET

Manufacturer: onsemi

Overview: NTMFS08N004C MOSFET – Power Trench, N‐Channel, Shielded Gate 80 V, 126 A, 4.

General Description

This N-Channel MV MOSFET is produced using ON Semiconductor’s advanced PowerTrench process that incorporates Shielded Gate technology.

This process has been optimized to minimize on-state resistance and yet maintain superior switching performance with best in class soft body diode.

Key Features

  • Shielded Gate MOSFET Technology.
  • Max rDS(on) = 4.0 mW at VGS = 10 V, ID = 44 A.
  • Max rDS(on) = 12.5 mW at VGS = 6 V, ID = 22 A.
  • 50% Lower Qrr than Other MOSFET Suppliers.
  • Lowers Switching Noise/EMI.
  • MSL1 Robust Package Design.
  • 100% UIL Tested.
  • These Devices are Pb.
  • Free and are RoHS Compliant.
