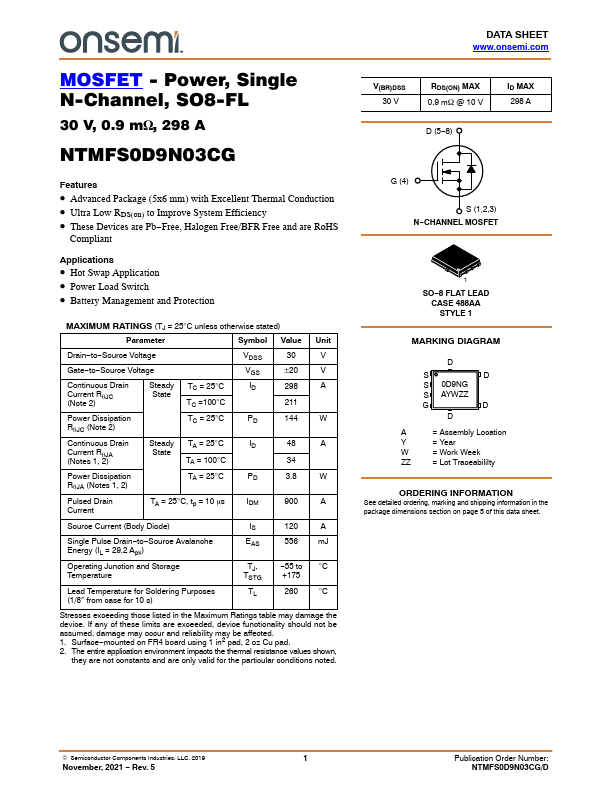

NTMFS0D9N03CG
NTMFS0D9N03CG is 30V 289A N-Channel Power MOSFET manufactured by onsemi.
Features
- Advanced Package (5x6 mm) with Excellent Thermal Conduction
- Ultra Low RDS(on) to Improve System Efficiency
- These Devices are Pb- Free, Halogen Free/BFR Free and are Ro HS pliant
Applications
- Hot Swap Application
- Power Load Switch
- Battery Management and Protection
MAXIMUM RATINGS (TJ = 25°C unless otherwise stated)
Parameter
Symbol Value Unit
Drain- to- Source Voltage
VDSS
Gate- to- Source Voltage
±20
Continuous Drain
Steady TC = 25°C
Current Rq JC (Note 2)
State TC =100°C
Power Dissipation Rq JC (Note 2)
TC = 25°C
Continuous Drain
Steady TA = 25°C
Current Rq JA (Notes 1, 2)
State TA = 100°C
Power Dissipation Rq JA (Notes 1, 2)
TA = 25°C
Pulsed Drain Current
TA = 25°C, tp = 10 ms
Source Current (Body...
