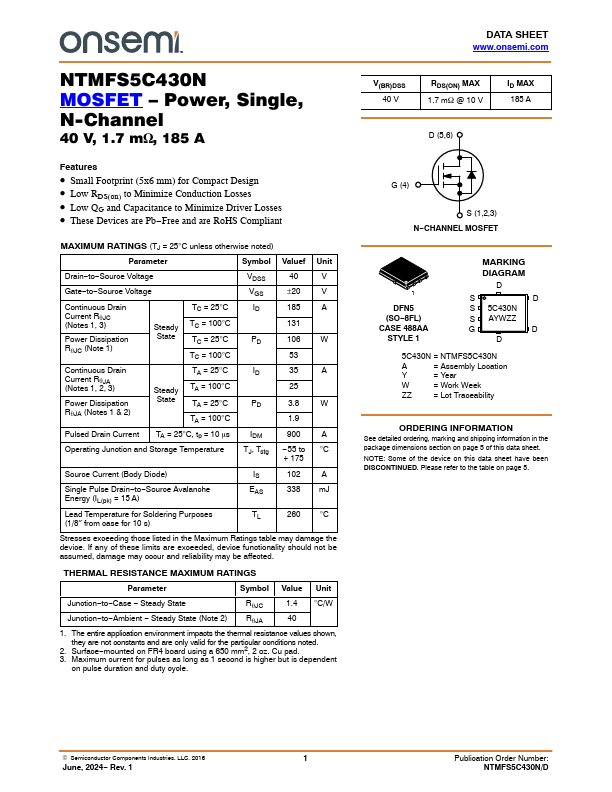

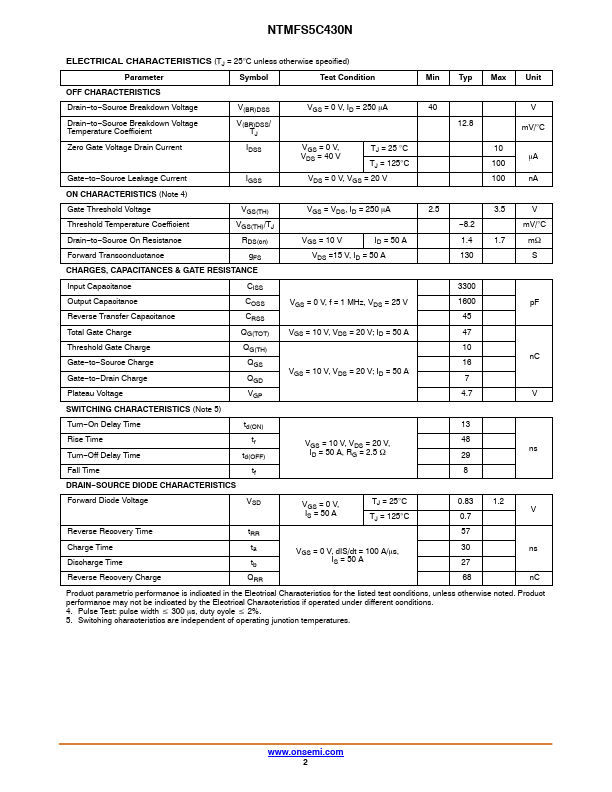

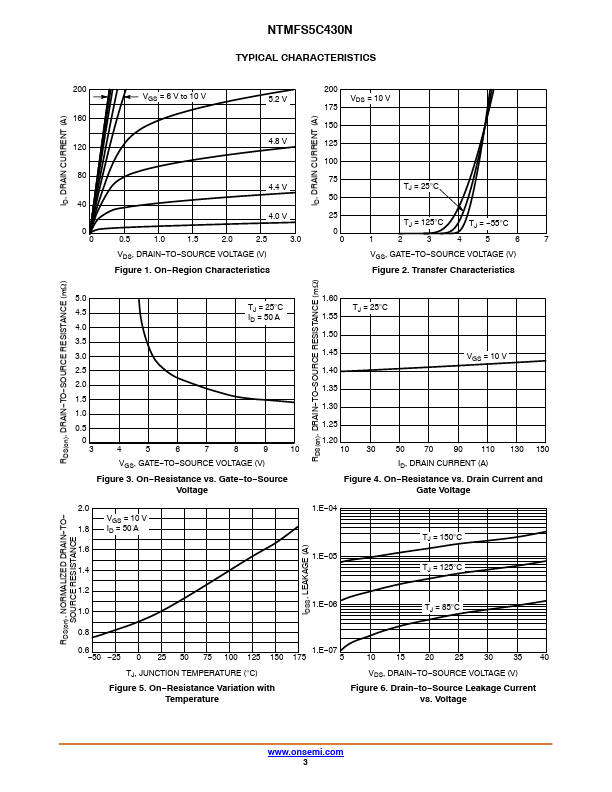

NTMFS5C430N MOSFET – Power, Single, N-Channel
40 V, 1.7 mW, 185 A
Features
• Small Footprint (5x6 mm) for Compact Design • Low RDS(on) to Minimize Conduction Losses • Low QG and Capacitance to Minimize Driver Losses • These Devices are Pb−Free and are RoHS Compliant
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
Parameter
Symbol Valuef Unit
Drain−to−Source Voltage
VDSS
40
V
Gate−to−Source Voltage
VGS
±20
V
Continuous Drain Current RqJC (Notes 1, 3)
Power Dissipation RqJC (Note 1)
TC = 25°C
ID
Steady TC = 100°C
State TC = 25°C
PD
TC = 100°C
185
A
131
106 W
53
Continuous Drain Current RqJA (Notes 1, 2, 3)
Power Dissipation RqJA (Notes 1 & 2)
TA = 25°C
ID
Steady TA = 100°C
State TA = 25°C
PD
TA = 100°C
35
A
25
3.8
W
1.
