NTMFS6H800N

Manufacturer: onsemi

NTMFS6H800N datasheet by onsemi.

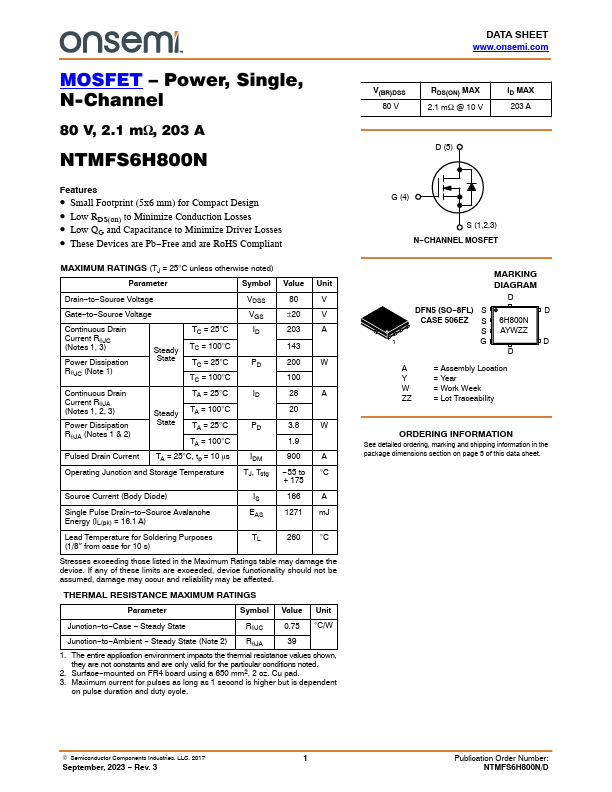

NTMFS6H800N datasheet preview

NTMFS6H800N Datasheet Details

Part number	NTMFS6H800N
Datasheet	NTMFS6H800N-ONSemiconductor.pdf
File Size	203.26 KB
Manufacturer	onsemi
Description	80V 203A N-Channel Power MOSFET

NTMFS6H800N Overview

MOSFET Power, Single, N-Channel 80 V, 2.1 mW, 203 A NTMFS6H800N.

NTMFS6H800N Key Features

Small Footprint (5x6 mm) for pact Design
Low RDS(on) to Minimize Conduction Losses
Low QG and Capacitance to Minimize Driver Losses
These Devices are Pb-Free and are RoHS pliant
55 to °C + 175
Steady State
Steady State (Note 2) RqJA
Rev. 3
