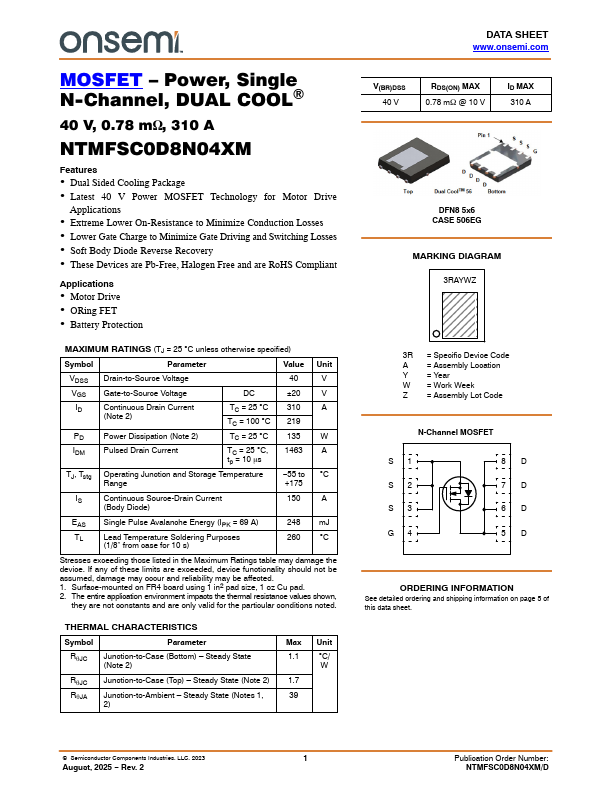

NTMFSC0D8N04XM
NTMFSC0D8N04XM is N-Channel Power MOSFET manufactured by onsemi.
MOSFET
- Power, Single N-Channel, DUAL COOL)
40 V, 0.78 mW, 310 A
Features
- Dual Sided Cooling Package
- Latest 40 V Power MOSFET Technology for Motor Drive
Applications
- Extreme Lower On-Resistance to Minimize Conduction Losses
- Lower Gate Charge to Minimize Gate Driving and Switching Losses
- Soft Body Diode Reverse Recovery
- These Devices are Pb-Free, Halogen Free and are RoHS pliant
Applications
- Motor Drive
- ORing FET
- Battery Protection
MAXIMUM RATINGS (TJ = 25 C unless otherwise specified)
Symbol
Parameter
Value Unit
VDSS Drain-to-Source Voltage
VGS Gate-to-Source Voltage
20
Continuous Drain Current
(Note 2)
TC = 25 C...
