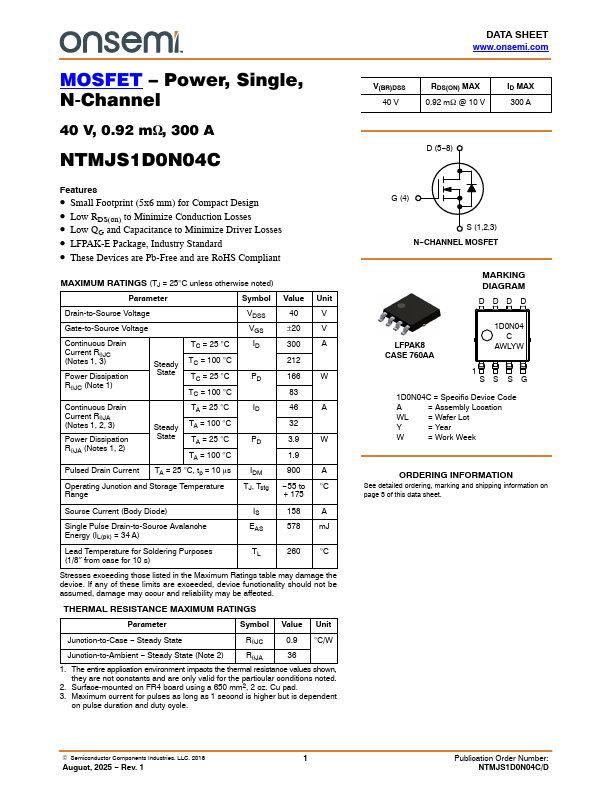

NTMJS1D0N04C
NTMJS1D0N04C is 40V 300A N-Channel Power MOSFET manufactured by onsemi.
Features
- Small Footprint (5x6 mm) for pact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- LFPAK-E Package, Industry Standard
- These Devices are Pb-Free and are Ro HS pliant
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
Parameter
Symbol Value Unit
Drain-to-Source Voltage
VDSS
Gate-to-Source Voltage
±20
Continuous Drain Current Rq JC (Notes 1, 3)
Power Dissipation Rq JC (Note 1)
TC = 25 °C
Steady TC = 100 °C
State TC = 25 °C
TC = 100 °C
166 W
Continuous Drain Current Rq JA (Notes 1, 2, 3)
Power Dissipation Rq JA (Notes 1, 2)
TA = 25 °C
Steady TA = 100 °C
State TA = 25 °C
TA = 100 °C
Pulsed Drain Current TA = 25 °C, tp = 10 ms IDM
Operating Junction and Storage Temperature Range
TJ,...
