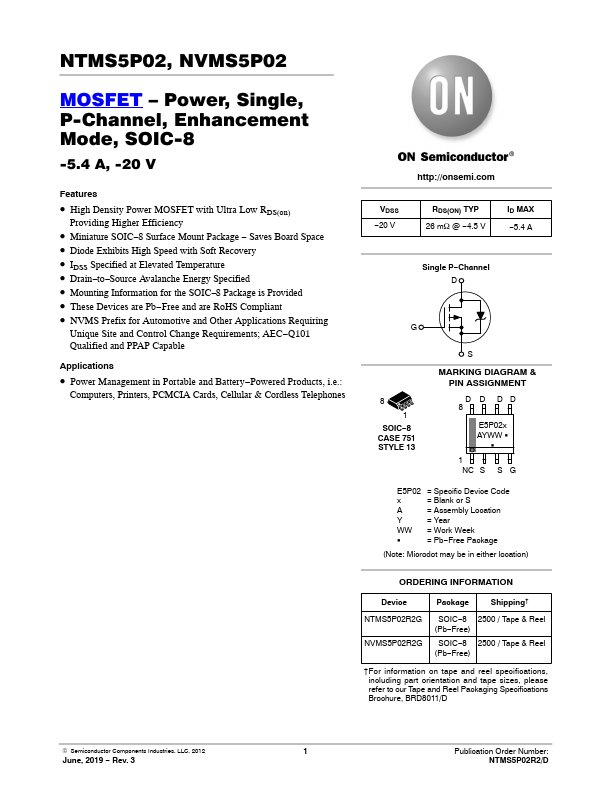

NTMS5P02, NVMS5P02 MOSFET - Power, Single, P-Channel, Enhancement Mode, SOIC-8 -5.4 A, -20 V Features - High Density Power MOSFET with Ultra Low RDS(on) Providing Higher Efficiency - Miniature SOIC- 8 Surface Mount Package - Saves Board Space - Diode Exhibits High Speed with Soft Recovery - IDSS Specified at Elevated Temperature - Drain- to- Source Avalanche Energy Specified - Mounting Information for the SOIC- 8 Package is Provided - These Devices are Pb- Free and are Ro HS pliant - NVMS Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC- Q101 Qualified and PPAP Capable Applications - Power Management in Portable and Battery- Powered Products, i.e.: puters, Printers, PCMCIA Cards, Cellular & Cordless Telephones http://onsemi. VDSS - 20 V RDS(ON) TYP 26 m W @ - 4.5 V ID MAX - 5.4 A Single P- Channel D SOIC- 8 CASE 751 STYLE 13 MARKING DIAGRAM & PIN ASSIGNMENT D D DD 8 E5P02x AYWW G 1 NC S S...
