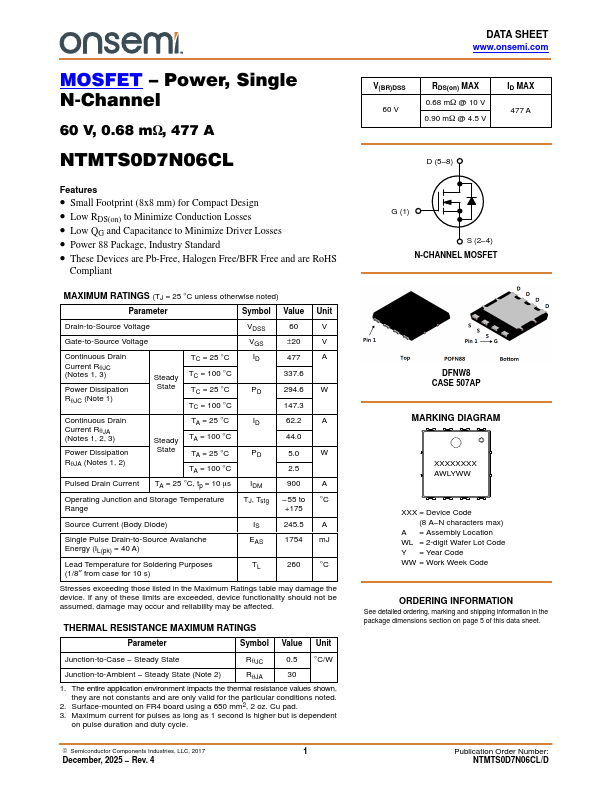

MOSFET – Power, Single N-Channel
60 V, 0.68 mW, 477 A
NTMTS0D7N06CL
Features
• Small Footprint (8x8 mm) for Compact Design • Low RDS(on) to Minimize Conduction Losses • Low QG and Capacitance to Minimize Driver Losses • Power 88 Package, Industry Standard • These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS
Compliant
MAXIMUM RATINGS (TJ = 25 °C unless otherwise noted)
Parameter
Symbol Value Unit
Drain-to-Source Voltage
VDSS
60
V
Gate-to-Source Voltage
VGS
±20
V
Continuous Drain Current RqJC (Notes 1, 3)
Power Dissipation RqJC (Note 1)
TC = 25 °C
ID
Steady TC = 100 °C
State TC = 25 °C
PD
TC = 100 °C
477
A
337.6
294.6 W
147.
