NTNS3164NZ - N-Channel MOSFET

Key Features

  • Single N-Channel MOSFET.
  • Ultra Low Profile SOT-883 (XDFN3) 1.0 x 0.6 x 0.4 mm for Extremely Thin Environments Such as Portable Electronics.
  • Low RDS(on) Solution in the Ultra Small 1.0 x 0.6 mm Package.
  • 1.5 V Gate Drive.
  • These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant.

📥 Download Datasheet

Full PDF Text Transcription for NTNS3164NZ (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for NTNS3164NZ. For precise diagrams, and layout, please refer to the original PDF.

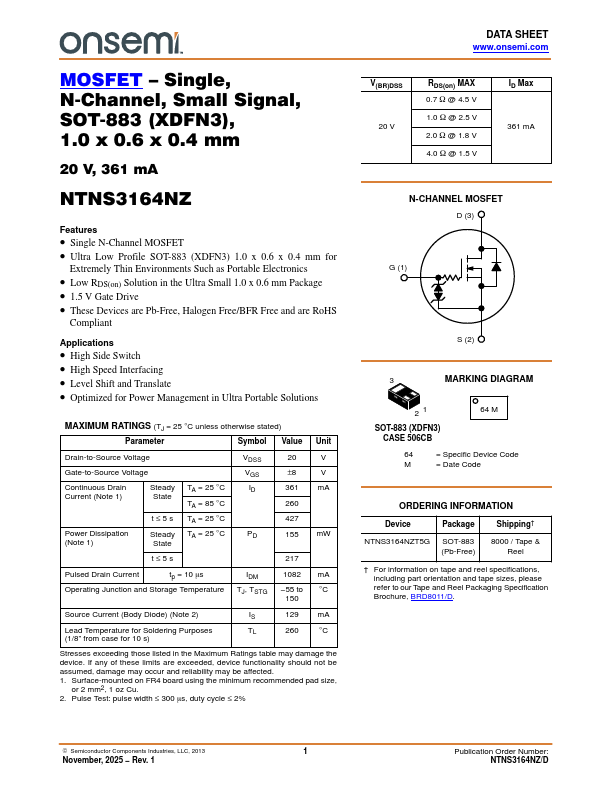

MOSFET – Single, N-Channel, Small Signal, SOT-883 (XDFN3), 1.0 x 0.6 x 0.4 mm 20 V, 361 mA NTNS3164NZ Features • Single N-Channel MOSFET • Ultra Low Profile SOT-883 (XDFN...

View more extracted text
Z Features • Single N-Channel MOSFET • Ultra Low Profile SOT-883 (XDFN3) 1.0 x 0.6 x 0.4 mm for Extremely Thin Environments Such as Portable Electronics • Low RDS(on) Solution in the Ultra Small 1.0 x 0.6 mm Package • 1.
