NTR1P02L - P-Channel Power MOSFET

onsemi

Key Features

Low RDS(on) Provides Higher Efficiency and Extends Battery Life.
Miniature SOT.
23 Surface Mount Package Saves Board Space.
NVTR Prefix for Automotive and Other.

NTR1P02L p-channel power mosfet by onsemi - Datasheet Preview

Datasheet Details

Part number	NTR1P02L
Manufacturer	onsemi
File Size	204.82 KB
Description	P-Channel Power MOSFET
Datasheet	NTR1P02L Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
NTR1P02LT1	P-Channel MOSFET	Kexin
NTR4003N	N-Channel Enhancement MOSFET	Kexin
NTR4101P	P-Channel MOSFET	Kexin
NTR4170NT	N-Channel MOSFET	Kexin
NTR4501NT1G	N-Channel MOSFET	Kexin

Other Datasheets by onsemi

Part Number	Description
NTR1P02	Power MOSFET
NTR1P02T1	Power MOSFET
NTR1P02T1G	Power MOSFET
NTR1P02T3	Power MOSFET
NTR1P02T3G	Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

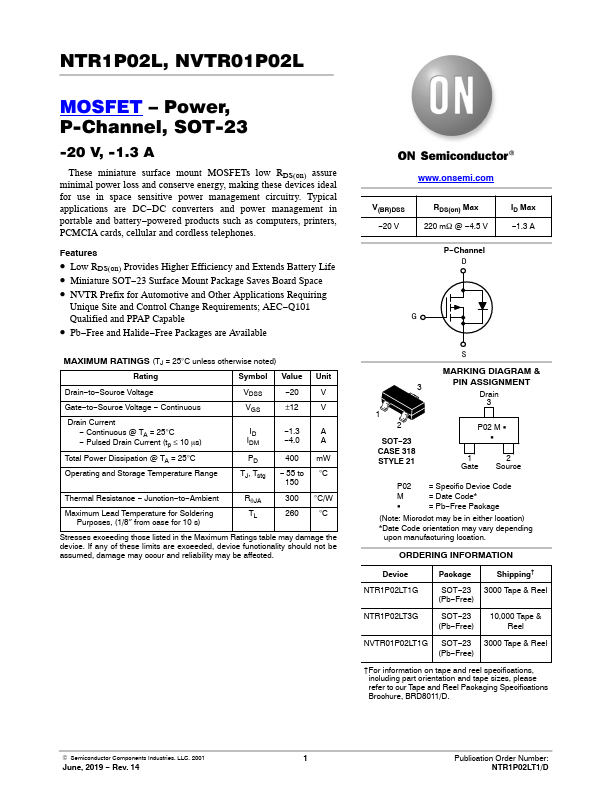

NTR1P02L, NVTR01P02L MOSFET – Power, P-Channel, SOT-23 -20 V, -1.3 A These miniature surface mount MOSFETs low RDS(on) assure minimal power loss and conserve energy, making these devices ideal for use in space sensitive power management circuitry. Typical applications are DC−DC converters and power management in portable and battery−powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones.
