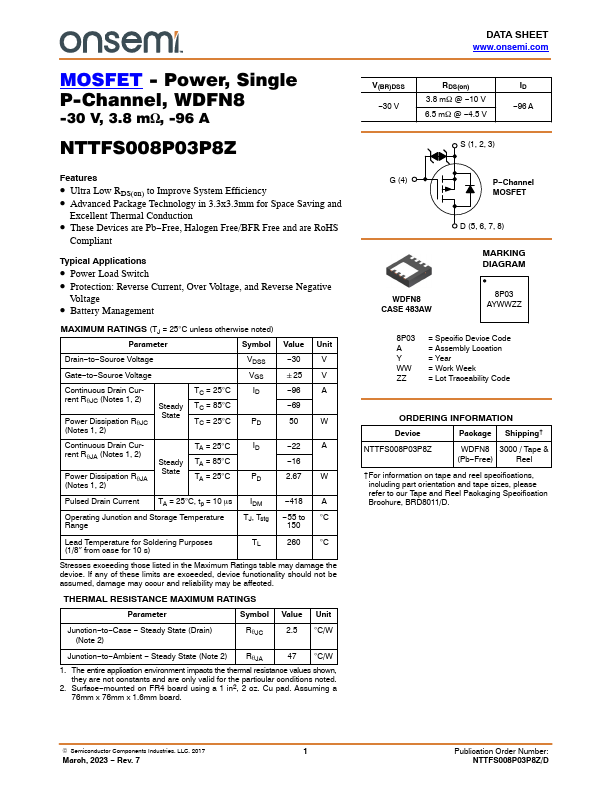

DATA SHEET .onsemi.
MOSFET
- Power, Single P-Channel, WDFN8
-30 V, 3.8 mW, -96 A
V(BR)DSS
- 30 V
RDS(on) 3.8 mW @
- 10 V 6.5 mW @
- 4.5 V
- 96 A
S (1, 2, 3)
Features
- Ultra Low RDS(on) to Improve System Efficiency
- Advanced Package Technology in 3.3x3.3mm for Space Saving and
Excellent Thermal Conduction
- These Devices are Pb- Free, Halogen Free/BFR Free and are RoHS pliant
Typical Applications
- Power Load Switch
- Protection: Reverse Current, Over Voltage, and Reverse Negative
Voltage
- Battery Management
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
Parameter
Symbol Value Unit
Drain- to- Source Voltage
Gate- to- Source Voltage
Continuous Drain...
