NTTFS8D1N08H - N-Channel Power MOSFET

General Description

This N

MOSFET process that incorporates Shielded Gate technology.

state resistance and yet maintain superior switching performance with best in class soft body diode.

Key Features

  • Shielded Gate MOSFET Technology.
  • Max RDS(on) = 8.3 mW at VGS = 10 V, ID = 16 A.
  • Max RDS(on) = 12.6 mW at VGS = 6 V, ID = 13 A.
  • Lowers Switching Noise/EMI.
  • MSL1 Robust Package Design.
  • 100% UIL Tested.
  • RoHS Compliant.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NTTFS4932NTWG N-Channel MOSFET VBsemi
NTTFSSCH0D7N02X N-Channel Power MOSFET onsemi
NTT106B Thyristor/Thyristor Module Naina Semiconductor
NTT122C Thyristor/Thyristor Module Naina Semiconductor
NTT132C Thyristor/Thyristor Module Naina Semiconductor

Other Datasheets by onsemi

Part Number Description
NTTFS002N04C N-Channel Power MOSFET
NTTFS003N04C N-Channel Power MOSFET
NTTFS004N04C N-Channel Power MOSFET
NTTFS008P03P8Z P-Channel Power MOSFET
NTTFS012N10MD N-Channel Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

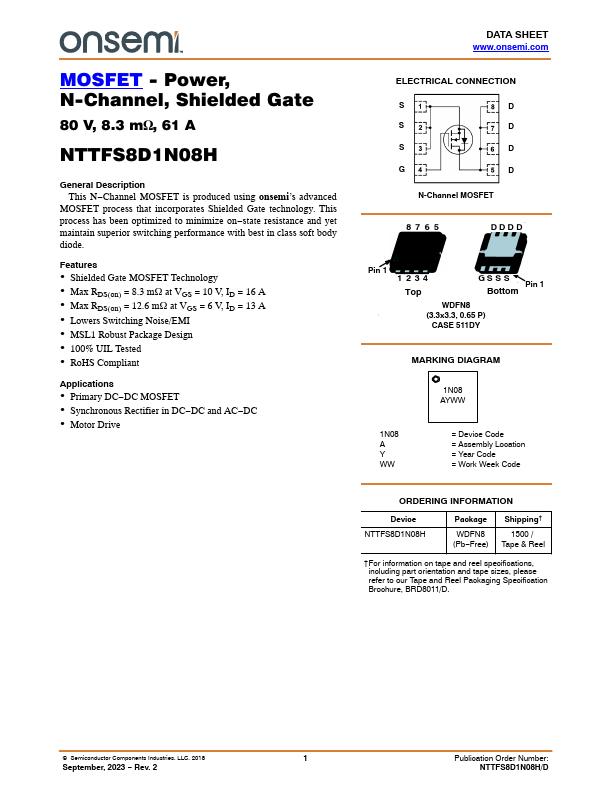

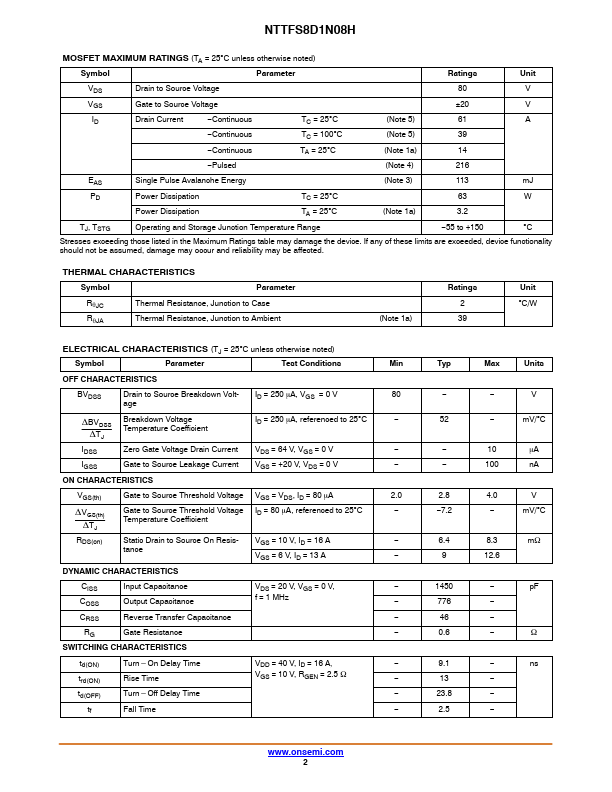

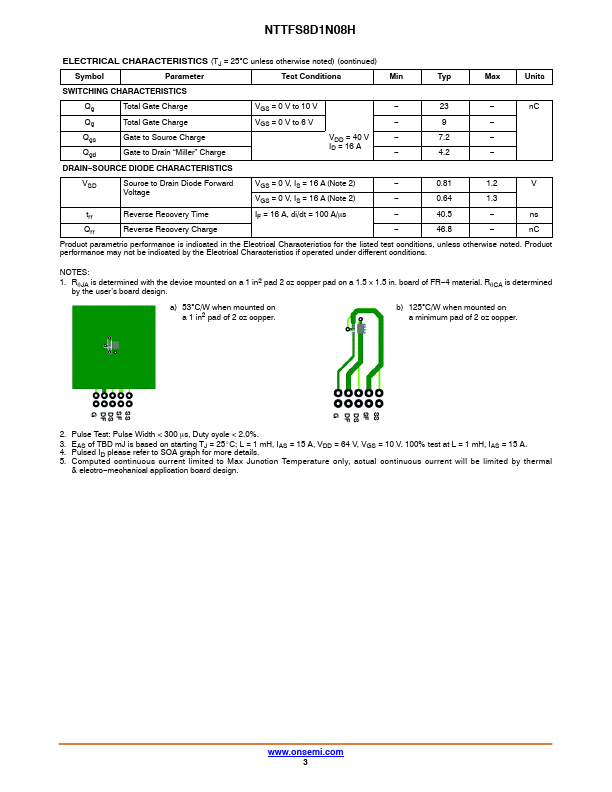

MOSFET - Power, N-Channel, Shielded Gate 80 V, 8.3 mW, 61 A NTTFS8D1N08H General Description This N−Channel MOSFET is produced using onsemi’s advanced MOSFET process that incorporates Shielded Gate technology. This process has been optimized to minimize on−state resistance and yet maintain superior switching performance with best in class soft body diode. Features  Shielded Gate MOSFET Technology  Max RDS(on) = 8.3 mW at VGS = 10 V, ID = 16 A  Max RDS(on) = 12.6 mW at VGS = 6 V, ID = 13 A  Lowers Switching Noise/EMI  MSL1 Robust Package Design  100% UIL Tested  RoHS Compliant Applications  Primary DC−DC MOSFET  Synchronous Rectifier in DC−DC and AC−DC  Motor Drive DATA SHEET www.onsemi.
