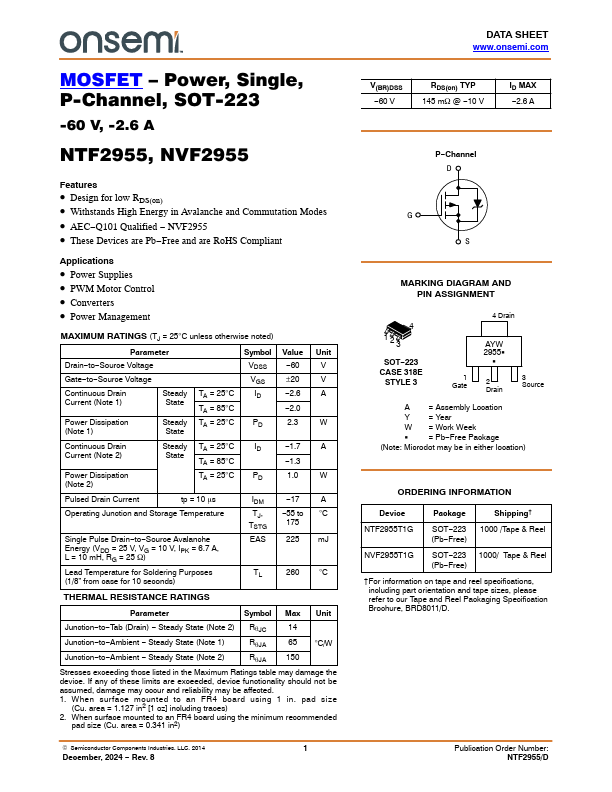

NTF2955, NVF2955
MOSFET – Power, Single, P-Channel, SOT-223
-60 V, -2.6 A
Features
• Design for low RDS(on) • Withstands High Energy in Avalanche and Commutation Modes • AEC−Q101 Qualified − NVF2955 • These Devices are Pb−Free and are RoHS Compliant
Applications
• Power Supplies • PWM Motor Control • Converters • Power Management
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
Parameter
Symbol Value Unit
Drain−to−Source Voltage
VDSS
−60
V
Gate−to−Source Voltage
VGS
±20
V
Continuous Drain Current (Note 1)
Steady TA = 25°C
ID
State
TA = 85°C
−2.6 A −2.0
Power Dissipation (Note 1)
Steady TA = 25°C PD State
2.3
W
Continuous Drain Current (Note 2)
Power Dissipation (Note 2)
Steady TA = 25°C
ID
State
TA = 85°C
TA = 25°C PD
−1.7 A
−1.3
1.
