NVXK2VR40WDT2 - SiC Power MOSFET

Product Overview

ON Semiconductor

Datasheet Details

Part number	NVXK2VR40WDT2
Manufacturer	ON Semiconductor
File Size	0.98 MB
Description	SiC Power MOSFET
Datasheet	NVXK2VR40WDT2 Datasheet
Additional preview pages of the NVXK2VR40WDT2 datasheet.

Product details

Description

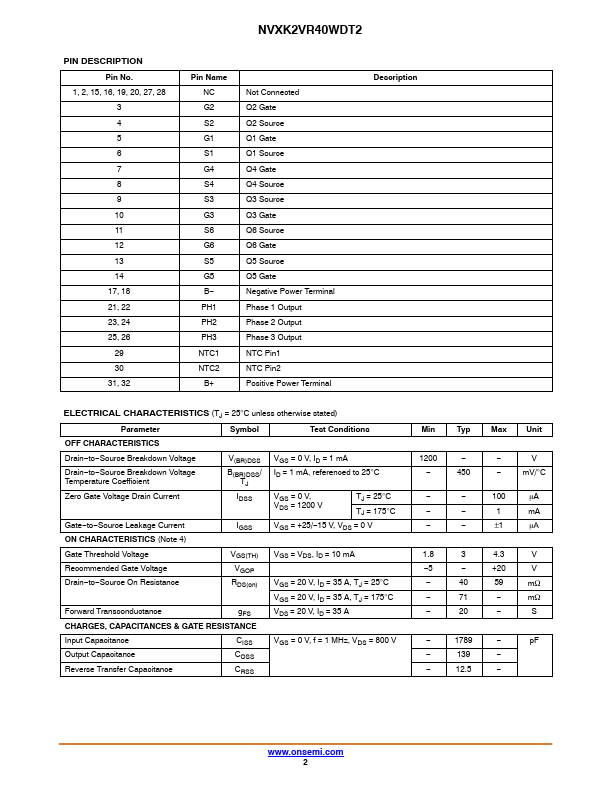

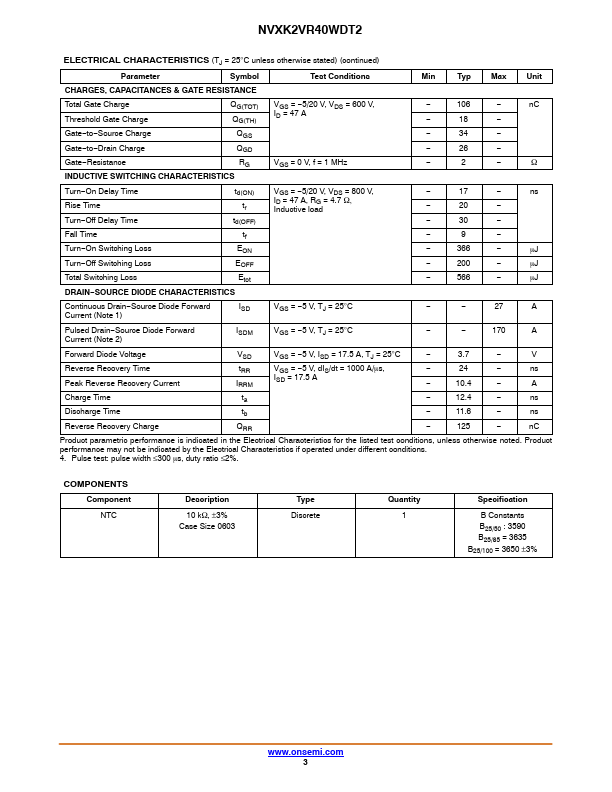

Pin No. PH1 PH2 PH3 NTC1 NTC2 B+ Not Connected Q2 Gate Q2 Source Q1 Gate Q1 Source Q4 Gate Q4 Source Q3 Source Q3 Gate Q6 Source Q6 Gate Q5 Source Q5 Gate Negative Power Terminal Phase 1 Output Phase 2 Output Phase 3 Output NTC Pin1 NTC Pin2 Positive Power Terminal Description ELECTRICAL CHARACTERISTICS (TJ = 25°C unless otherwise state

Features

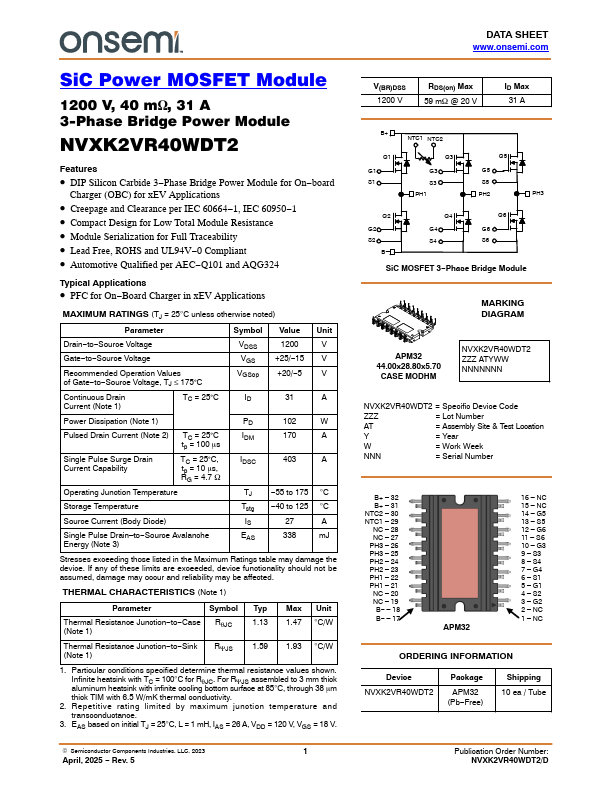

DIP Silicon Carbide 3.
Phase Bridge Power Module for On.
board Charger (OBC) for xEV.
