RB521S30 - Schottky Barrier Diode

onsemi

General Description

SOD

Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

Key Features

Extremely Fast Switching Speed.
Extremely Low Forward Voltage 0.5 V (max) @ IF = 200 mA.
Low Reverse Current.
NSV Prefix for Automotive and Other.

📥 Download Datasheet

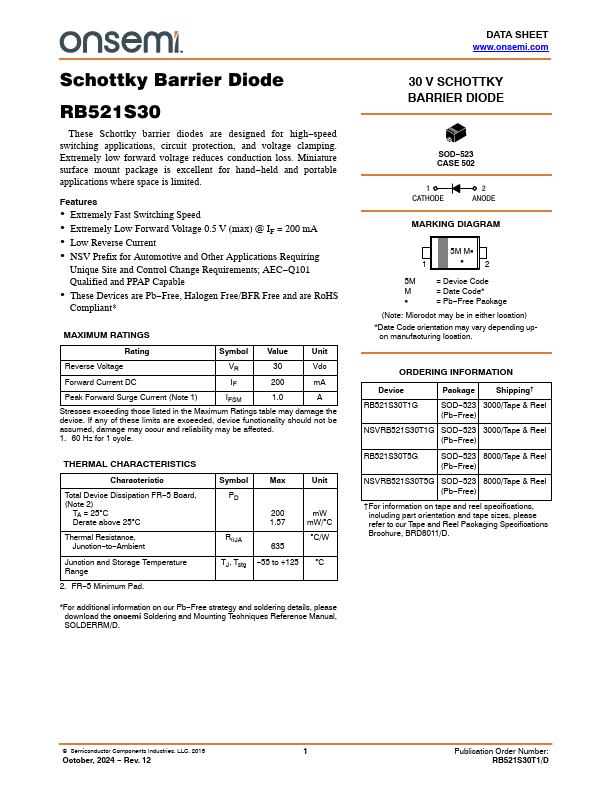

RB521S30 schottky barrier diode by onsemi - Datasheet Preview

Datasheet Details

Part number	RB521S30
Manufacturer	onsemi
File Size	179.18 KB
Description	Schottky Barrier Diode
Datasheet	RB521S30 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
RB521S30	Schottky barrier rectifier	NXP
RB521S30	Schottky Barrier Diodes	Fairchild Semiconductor
RB521S30	Schottky Barrier Diode	WillSEMI
RB521S30	SURFACE MOUNT SCHOTTKY DIODE	Pan Jit International
RB521S30	SCHOTTKY BARRIER DIODES	UTC

Other Datasheets by onsemi

Part Number	Description
RB521S30T1	Schottky Barrier Diode
RB521S30T1G	Schottky Barrier Diode
RB521S30T5	Schottky Barrier Diode
RB521S30T5G	Schottky Barrier Diode
RB520S30T1	Schottky Barrier Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

RB521S30 Schottky Barrier Diode, 30 V These Schottky barrier diodes are designed for high−speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand−held and portable applications where space is limited. Features • Extremely Fast Switching Speed • Extremely Low Forward Voltage 0.
