SBRS8130LN - Schottky Power Rectifier

This page provides the datasheet information for the SBRS8130LN, a member of the SBRS8130LT3G Schottky Power Rectifier family.

Datasheet Summary

Features

  • epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes, in surface mount.

📥 Download Datasheet

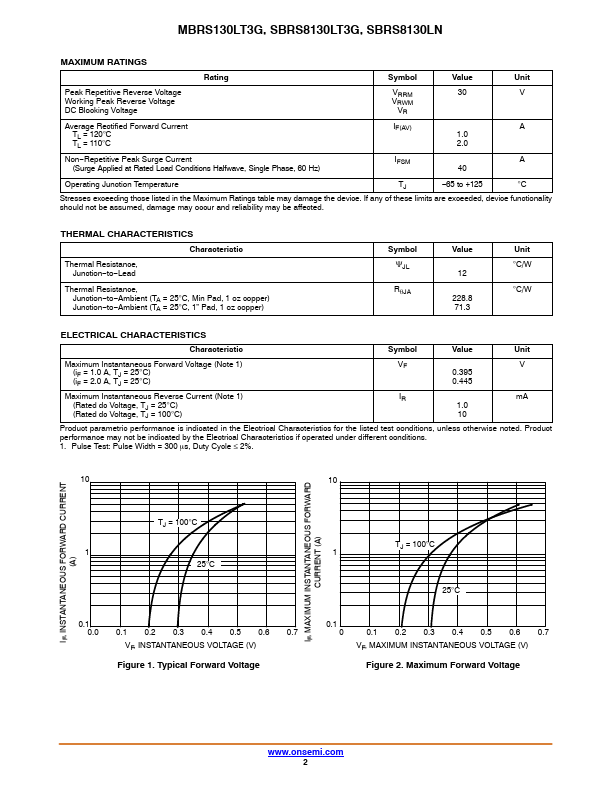

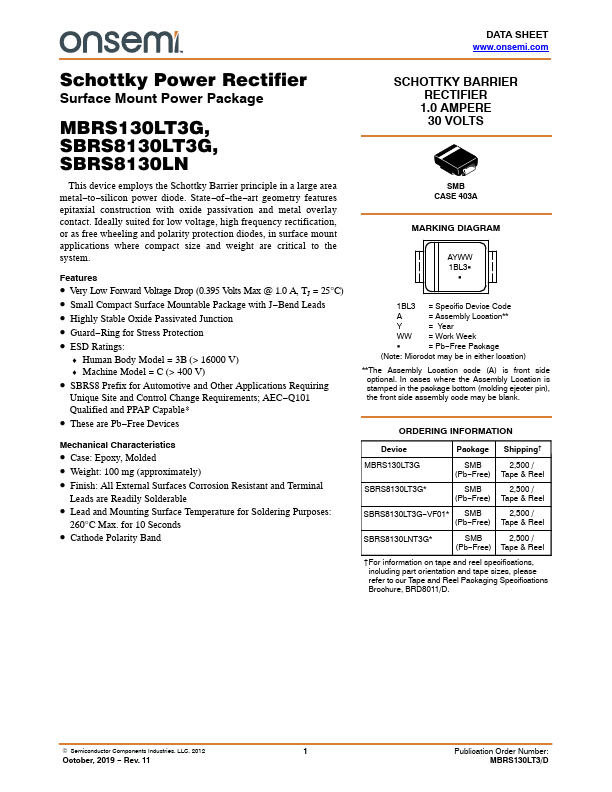

Datasheet preview – SBRS8130LN

Datasheet Details

Part number SBRS8130LN
Manufacturer ON Semiconductor
File Size 270.90 KB
Description Schottky Power Rectifier
Datasheet download datasheet SBRS8130LN Datasheet

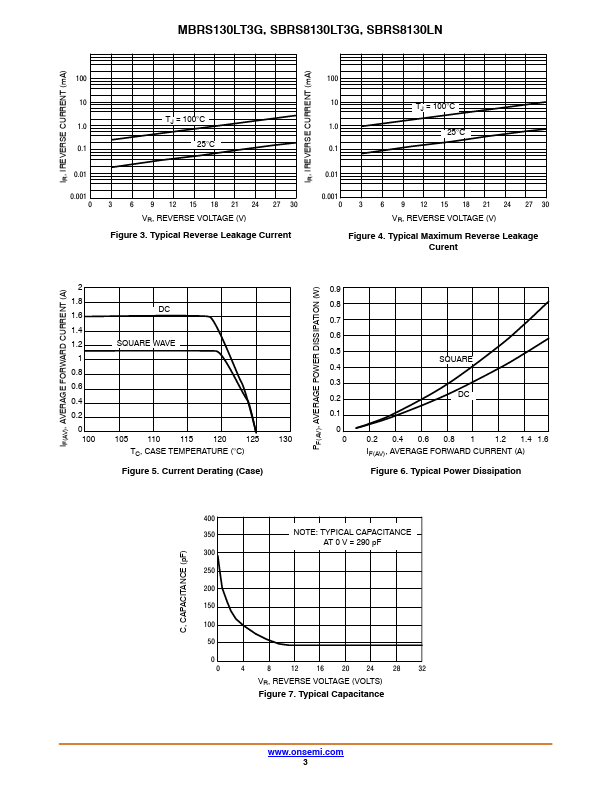

Additional preview pages of the SBRS8130LN datasheet.

📁 Similar Datasheet

  • SBR0 - (SBR05 - SBR30) Standard Recovery 1-Phase Silicon Bridge Rectifier Assembly (Semtech Corporation)
  • SBR0120S3 - (SBR0120S3 / SBR0120S5) Super barrier rectifier (APD)
  • SBR0120S5 - (SBR0120S3 / SBR0120S5) Super barrier rectifier (APD)
  • SBR0130S3 - (SBR0130S3 / SBR0130S5) Super barrier rectifier (APD)
  • SBR0130S5 - (SBR0130S3 / SBR0130S5) Super barrier rectifier (APD)
  • SBR0140S3 - (SBR0140S3 / SBR0140S5) Super barrier rectifier (APD)
  • SBR0140S5 - (SBR0140S3 / SBR0140S5) Super barrier rectifier (APD)
  • SBR0220LP - Super Barrier Rectifier (Diodes Incorporated)
  • SBR0220T5 - Super Barrier Rectifier (Diodes Incorporated)
  • SBR0230T5 - Super Barrier Rectifier (Diodes Incorporated)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
Schottky Power Rectifier Surface Mount Power Package MBRS130LT3G, SBRS8130LT3G, SBRS8130LN This device employs the Schottky Barrier principle in a large area metal−to−silicon power diode. State−of−the−art geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes, in surface mount applications where compact size and weight are critical to the system. Features • Very Low Forward Voltage Drop (0.395 Volts Max @ 1.
