GWCS8PM1.CM Overview

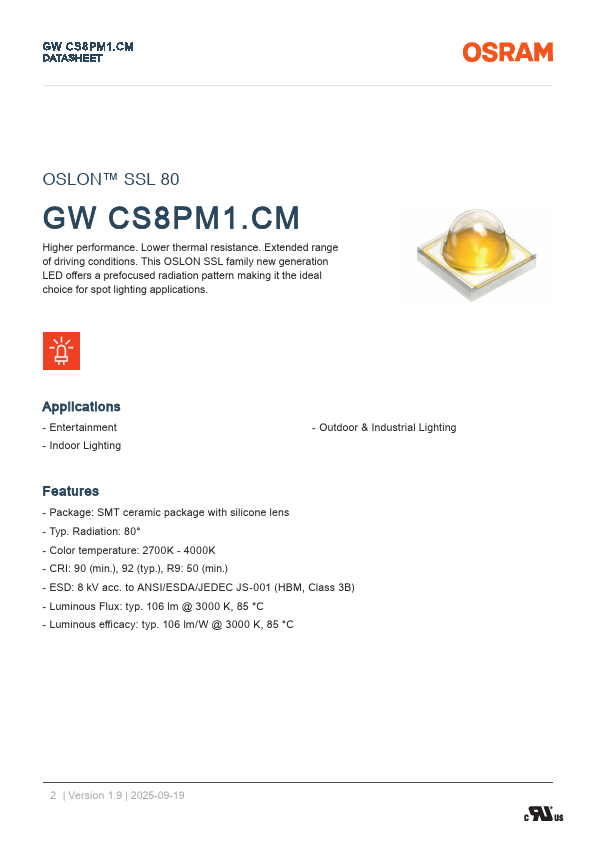

GW CS8PM1.CM DATASHEET OSLON™ SSL 80 GW CS8PM1.CM Higher performance. Extended range of driving conditions. This OSLON SSL family new generation LED offers a prefocused radiation pattern making it the ideal choice for spot lighting applications.
GWCS8PM1.CM Key Features
- Package: SMT ceramic package with silicone lens
- Typ. Radiation: 80°
- Color temperature: 2700K
- CRI: 90 (min.), 92 (typ.), R9: 50 (min.)
- ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
- Luminous Flux: typ. 106 lm @ 3000 K, 85 °C
- Luminous efficacy: typ. 106 lm/W @ 3000 K, 85 °C

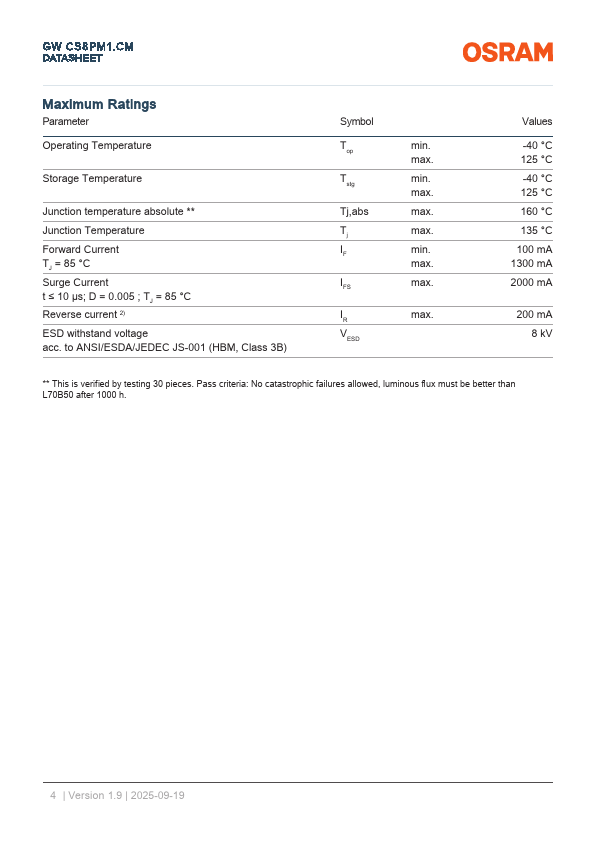

- This is verified by testing 30 pieces. Pass criteria: No catastrophic failures allowed, luminous flux must be better tha
