GWCS8PM1.PM Overview

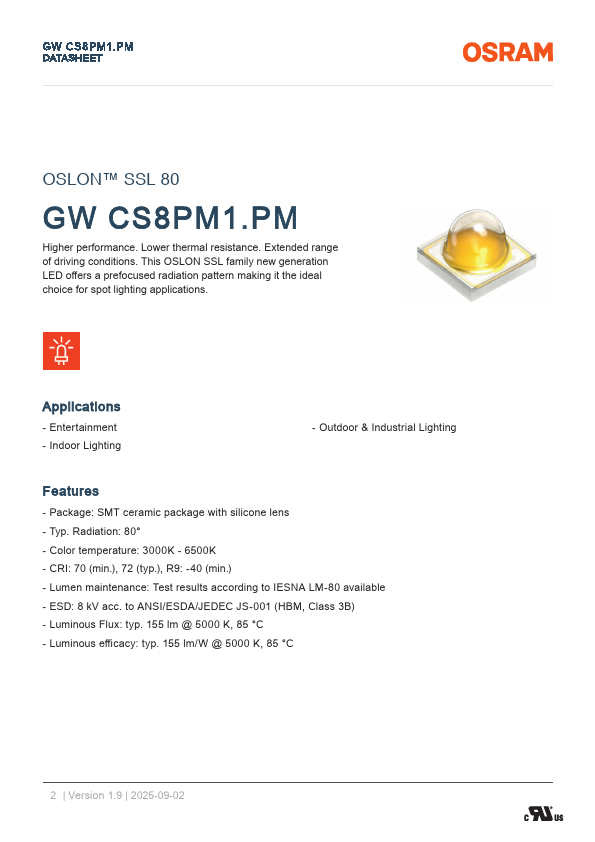

GW CS8PM1.PM DATASHEET OSLON™ SSL 80 GW CS8PM1.PM Higher performance. Extended range of driving conditions. This OSLON SSL family new generation LED offers a prefocused radiation pattern making it the ideal choice for spot lighting applications.
GWCS8PM1.PM Key Features
- Package: SMT ceramic package with silicone lens
- Typ. Radiation: 80°
- Color temperature: 3000K
- CRI: 70 (min.), 72 (typ.), R9: -40 (min.)
- Lumen maintenance: Test results according to IESNA LM-80 available
- ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
- Luminous Flux: typ. 155 lm @ 5000 K, 85 °C
- Luminous efficacy: typ. 155 lm/W @ 5000 K, 85 °C

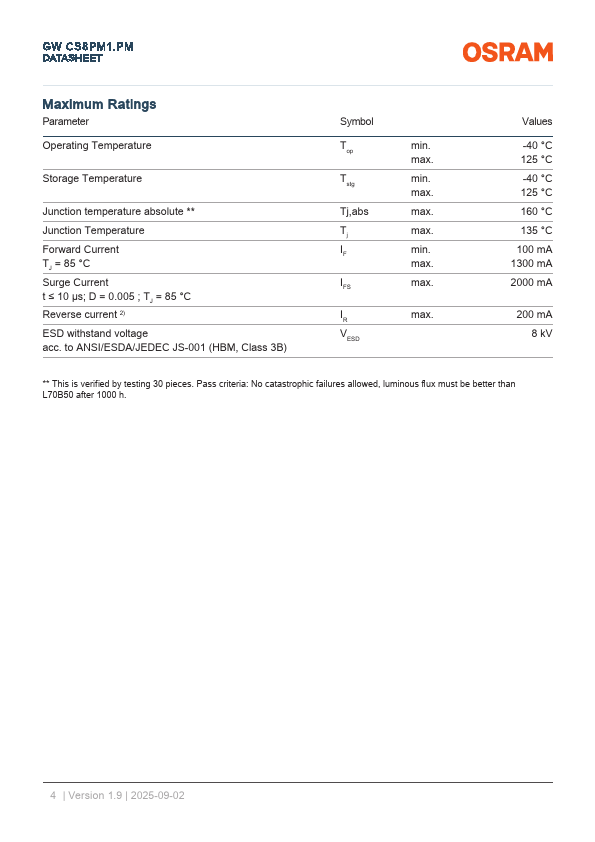

- This is verified by testing 30 pieces. Pass criteria: No catastrophic failures allowed, luminous flux must be better tha
