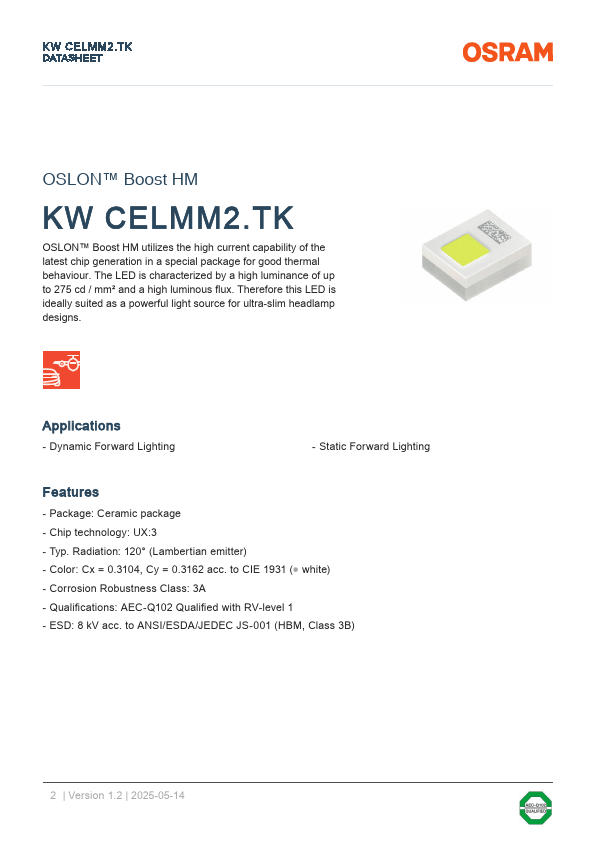

KWCELMM2.TK is LED manufactured by ams OSRAM.
Features
- Package: Ceramic package
- Chip technology: UX:3
- Typ. Radiation: 120° (Lambertian emitter)
- Color: Cx = 0.3104, Cy = 0.3162 acc. to CIE 1931 (- white)
- Corrosion Robustness Class: 3A
- Qualifications: AEC-Q102 Qualified with RV-level 1
- ESD: 8 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
2 | Version 1.2 | 2025-05-14
K W CELMM2.TK DATASHEET

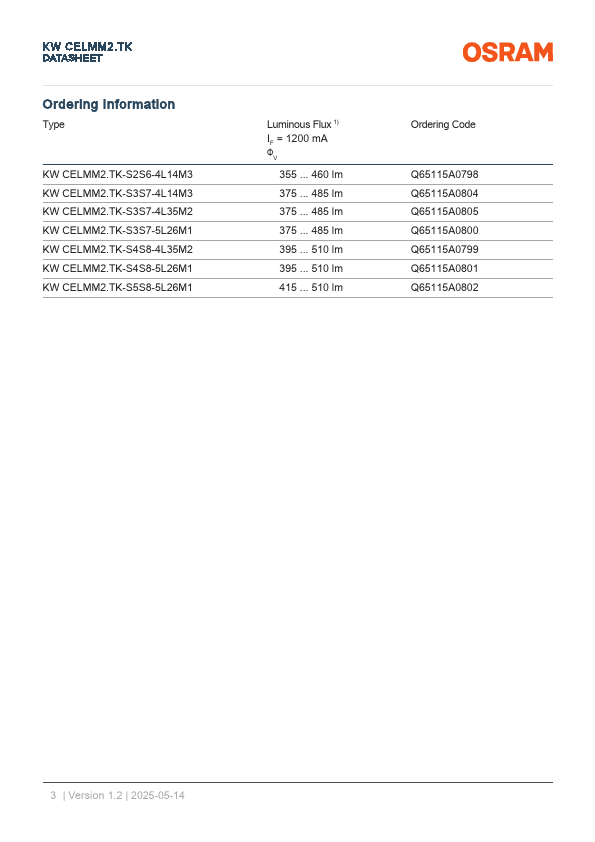

Ordering Information
Type
KW CELMM2.TK-S2S6-4L14M3 KW CELMM2.TK-S3S7-4L14M3 KW CELMM2.TK-S3S7-4L35M2 KW CELMM2.TK-S3S7-5L26M1 KW CELMM2.TK-S4S8-4L35M2 KW CELMM2.TK-S4S8-5L26M1 KW CELMM2.TK-S5S8-5L26M1
Luminous Flux 1) IF = 1200 m A ΦV
355 ... 460 lm 375 ... 485 lm 375 ... 485 lm 375 ... 485 lm 395 ... 510 lm 395 ... 510 lm 415 ... 510 lm
Ordering Code
Q65115A0798 Q65115A0804 Q65115A0805 Q65115A0800 Q65115A0799 Q65115A0801 Q65115A0802
3 | Version 1.2 | 2025-05-14
K W CELMM2.TK DATASHEET

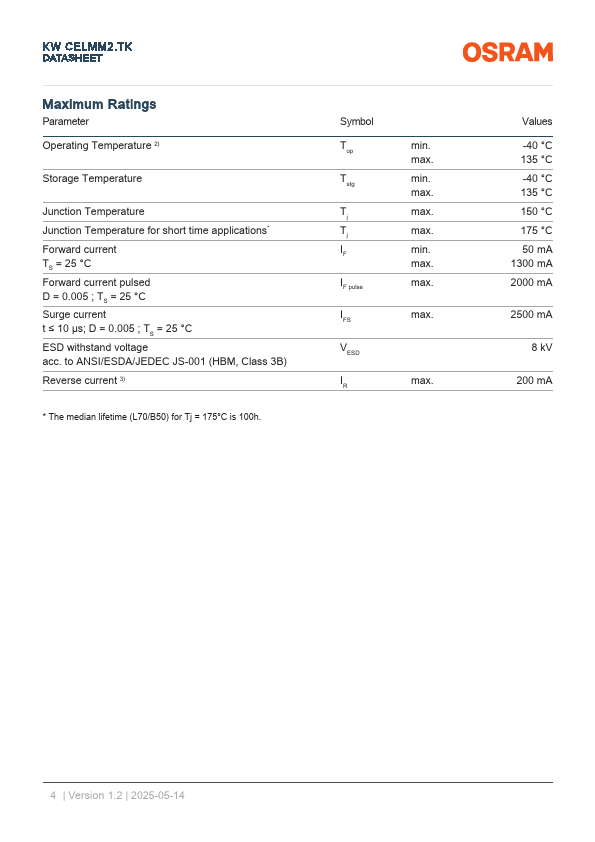

Maximum Ratings
Parameter
Operating Temperature 2)
Storage Temperature
Junction Temperature Junction Temperature for short time applications- Forward current TS = 25 °C Forward current pulsed D = 0.005 ; TS = 25 °C Surge current t ≤ 10 µs; D = 0.005 ; TS = 25 °C ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B) Reverse current 3)
- The median lifetime (L70/B50) for Tj = 175°C is 100h.
Symbol Top Tstg Tj Tj IF IF pulse IFS VESD IR min. max. min. max. max. max. min. max. max. max. max.
Values
-40 °C 135 °C -40 °C 135 °C 150 °C 175 °C 50 m A 1300 m A 2000 m A
2500 m A
8 k V
200 m A
4 | Version 1.2 | 2025-05-14
K W CELMM2.TK DATASHEET
Characteristics...
